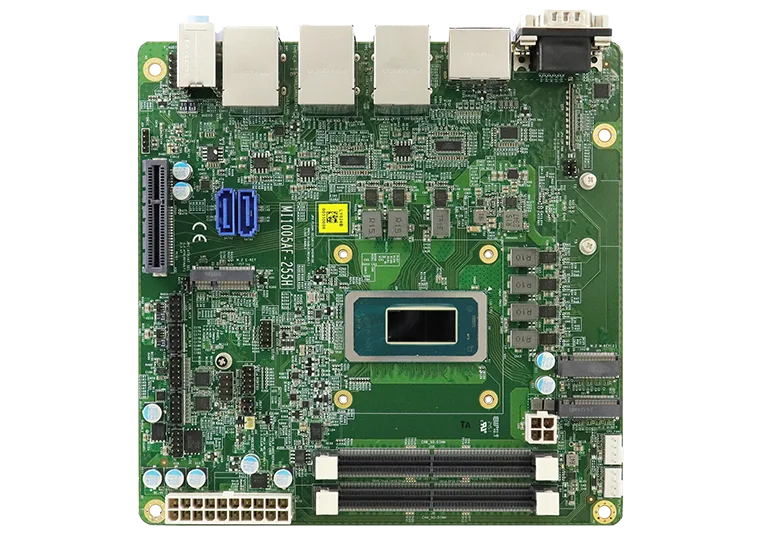

MI1005

Carte mère Mini-ITX — Intel® Core™ Ultra 200H/200U Series Mobile Processors (Arrow Lake-U/H)

Carte mère Mini-ITX — Intel® Core™ Ultra 200H/200U Series Mobile Processors (Arrow Lake-U/H). Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

BGA2049 CPU onboard

MEMORY

2x DDR5 SO-DIMM sockets, Up to DDR5-6400 cSO-DIMM memory module, Max. 96GB

STORAGE

SATA III & NVMe

DISPLAY

1x eDP + HDMI + 1x DisplayPort (1.4a) (DP++) + 2x Type-C

Mini-ITX MotherboardMotherboard

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT MI1005 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

26 LIGNES

CPU Socket	BGA2049 CPU onboard
CPU	Intel® Core™ Ultra 9/7/5 200 U/H Mobile Processors (Arrow Lake – U/H)
PCH	N/A
Memory	2x DDR5 SO-DIMM sockets, Up to DDR5-6400 cSO-DIMM memory module, Max. 96GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	SATA III & NVMe
Expansion Slots	1x PCI-E (x4) [Gen 4]
Mini Type Slots	2x M.2 (M-Key, type:2280 + 2242, PCI-E(4x) Gen.4)1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E(1x) Gen.4)
Graphics Controller	Intel® Core™ Ultra 9/7/5 200 U/H Mobile Processors integrated graphics

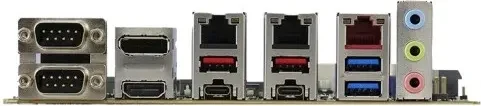

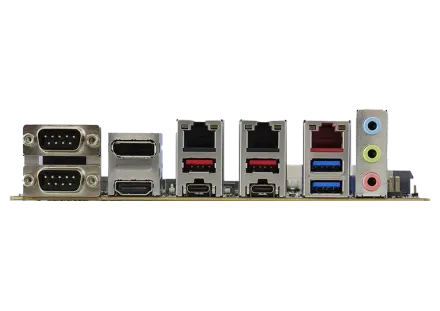

Video Output	1x eDP + HDMI + 1x DisplayPort (1.4a) (DP++) + 2x Type-C
Ethernet	LAN 1 : Intel® I226LM, Support 2.5G and iAMTLAN 2 / LAN 3: Intel® I226V, support 2.5G only
I/O Chip	Fintek F81966AB-I
Serial Port	4x COM ports: 2x RS232/422/485 + 2x RS232
USB 2.0	4x USB 2.0 via pin-header
USB 3.X	4x USB3.2 Type A (10bps)+ 2x USB Type-C (10 bps) @ edge connector
Serial ATA	2x SATA III
Audio	Built-in HD Audio controller + Realtek ALC888S w/ 7.1 channels
TPM	Supports fTPM
Others	Digital I/O (4-in/4-out) , Watchdog timer, PDPC, CPU cooler
Dimensions (L x W)	170mm x 170mm (6.7“x 6.7“)
Power Consumption	TBD
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
