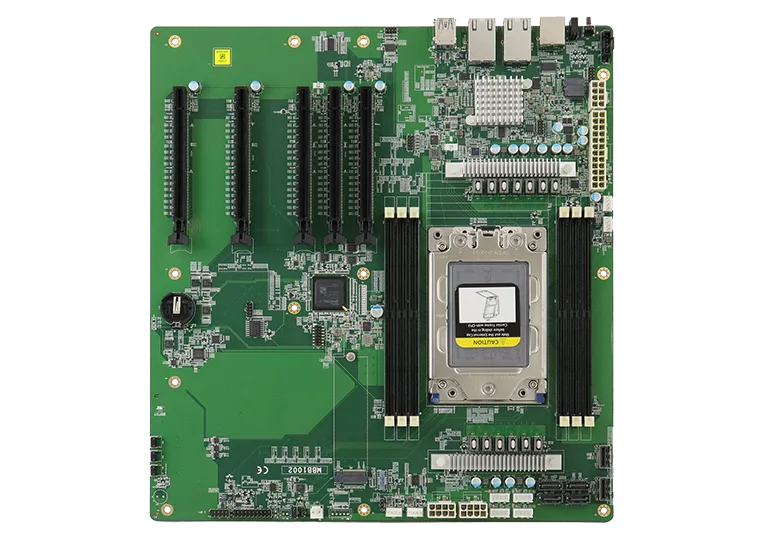

MBB1002

Carte mère eATX — AMD EPYC Embedded 8004 Series Processors

Carte mère eATX — AMD EPYC Embedded 8004 Series Processors. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

AMD SP6 LGA 4844 (EPYC SP6 processors)

MEMORY

Six-Channel DDR5 4800, 6 slots RDIMM, Max. 576GB, supports ECC3600/4000/4400/4800MHz, 16GB, 32GB, 64GB, 96GB

STORAGE

4x SATA(6Gb/s)NVMe: 1x 2280 (by PCIe Gen.5 interface)NVMe: 2x MCIO x4 (Test by Gen.5 SSD)

DISPLAY

N/A

ATX MotherboardMotherboard

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT MBB1002 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

26 LIGNES

CPU Socket	AMD SP6 LGA 4844 (EPYC SP6 processors)
CPU	AMD EPYC Embedded 8004 series
PCH	N/A
Memory	Six-Channel DDR5 4800, 6 slots RDIMM, Max. 576GB, supports ECC3600/4000/4400/4800MHz, 16GB, 32GB, 64GB, 96GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	4x SATA(6Gb/s)NVMe: 1x 2280 (by PCIe Gen.5 interface)NVMe: 2x MCIO x4 (Test by Gen.5 SSD)
Expansion Slots	5x PCI-E(x16) (Gen5.0)
Mini Type Slots	N/A
Graphics Controller	N/A
Video Output	N/A
Ethernet	2x Intel® X710-AT2 (Dual 10GbE port)
I/O Chip	TBD
Serial Port	1x External serial port (RS232)
USB 2.0	2x USB 2.0 PIN Header
USB 3.X	2x (USB 3.2 Gen1) with PDPC
Serial ATA	4x SATA (6Gb/s)
Audio	N/A
TPM	TPM 2.0
Others	1x 24-pin SSI power connector3x 8-pin SSI 12V power connector4x Fan header 4-pin (3 for system + 1 for CPU)1x SMBus3x LED (Power+HDD+Status refer to Genoa)1x RTC battery on board
Dimensions (L x W)	eATX (30.4 cm x 24.4 cm)
Power Consumption	TBD
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	0%~90% (non-condensing @60°C)
