MB961

Name: MB961
Brand: IBASE Technology
SKU: MB961
Availability: InStock

LGA115 Intel® Core™ i7 / i5 / i3 Micro ATX Motherboard Intel® Q67 Express Chipset

LGA115 Intel® Core™ i7 / i5 / i3 Micro ATX Motherboard Intel® Q67 Express Chipset. Local warranty support and engineering customization available on request.

CPU

LGA1155

MEMORY

2x DDR3 DIMM Max. 16GB (Non-ECC)

STORAGE

-20°C~80°C (-4°F~176°F)

ETHERNET

Intel 82579V Gigabit LAN · Reakltek RTL8111E Gigabit LAN · RJ-45 on board

REQUEST QUOTE REQUEST DATASHEET

P/N # MB961

Manual

Specifications

21 ROWS

CPU Socket	LGA1155
CPU	3rd Generation Intel Core™ i7 / i5 / i3, Pentium/Celeron processors · Up to 3.4GHz
Chipset	Intel® Q67 (MB961RF) Intel® H61 (MB961F and MB961)
BIOS	AMI BIOS, ACPI supported
System Memory	2x DDR3 DIMM Max. 16GB (Non-ECC)
LAN	Intel 82579V Gigabit LAN · Reakltek RTL8111E Gigabit LAN · RJ-45 on board
Audio	Intel H61/Q67 built-in HD audio with Realtek ALC892
Multi I/O	Fintek F81866-AD · For 3x RS-232, 1x RS-232/422/485 (jumperless selecting), · 2x SATA II+2x SATA III (MB961RF) or 4x SATA II (MB961F) · 2 ports on board (USB 3.0) · MB961F : 4 ports on board + 6 ports via pin header (USB 2.0) · MB961RF : 4 ports on board + 8 ports via pin header (USB 2.0)
Watchdog Timer	Generates system reset; 256 levels
Serial ATA Interface	2x SATA II+2x STA III (MB961RF) or 4x SATA II (MB961F)
Watchdog Timer	Generates system reset; 256 levels
Hardware Monitoring	Monitors system/CPU temperature and voltage status
Digital I/O	4 in and 4 out
Other Features	Digital I/O(4-in/4-out), iSMART, RAID (MB961RF only)
Expansion Slots	2x PCI, 1x PCI-E(x16), 1x PCI-E(x8)

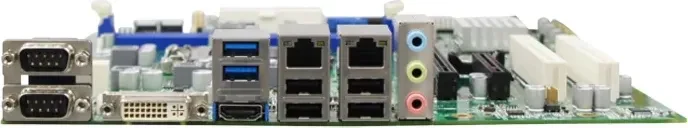

Edge Connectors	COM ports, DVI-I, USB+HDMI, 2x USB+RJ-45, Audio
Form Factor	Micro-ATX Motherboard
Dimensions	244mm x 244mm (9.6" x 9.6")
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)

Features

8 ROWS

Feature 1	Supports 3rd Generation Intel Core™ i7 / i5 / i3, Pentium/Celeron processors
Feature 2	2x DDR3 DIMM, Max. 16GB
Feature 3	Integrated chipset VGA, supports HDMI™, DVI-I, LVDS
Feature 4	Intel® 82579V Gigabit LAN
Feature 5	Realtek RTL8111E Gigabit LAN
Feature 6	12x USB 2.0, 2x USB 3.0, 4x COM, 4x SATA II, 2x SATA III
Feature 7	2x PCI, 1x PCI-E(x16), 1x PCI-E(x8)
Feature 8	Watchdog timer, Digital I/O, iSMART, RAID

Ordering Information

2 ROWS

MB961RF	- LGA1155 Q67 Micro ATX motherboard with HDMI, DVI-I and LVDS, Dual Gigabit LAN, 2x SATA III, 2x SATA II, 1x PCI-E(16x),1x PCIe(4x), 2x PCI,
MB961F	- LGA1155 H61 Micro ATX motherboard with HDMI, DVI-I and LVDS, Dual Gigabit LAN, 4x SATA II,1x PCI-E(16x), 1x PCI-E(1x),2x PCI, iSMART
