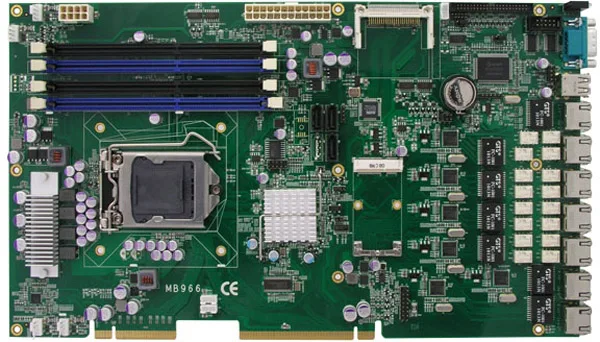

MB966

Carte mère — Intel© Xeon Core™i7/ i5 / i3 / Pentium© G6950 Networking

Carte mère — Intel© Xeon Core™i7/ i5 / i3 / Pentium© G6950 Networking. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Supports Intel Xeon Core ™ i7/ i5 / i3 / Pentium G6950 processor, up to 3.06GHz

MEMORY

Four DDR3 sockets, up to 16GB DDR SDRAM · Supports ECC with Xeon 3400

STORAGE

-20Â°C~80Â°C (-4Â°F~176Â°F)

ETHERNET

MGN1: INtel Nineveh Gigabit PHY (82578DM) w with AMT 6.0 support · LAN1~LAN6: Intel 82574L GbE NIC; supports SNMP, PXE and Wake-on-LAN · LAN1/2 and LAN3/4 bypass function

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT MB966 — IBASE Technology

Specifications

20 LIGNES

CPU	Supports Intel Xeon Core ™ i7/ i5 / i3 / Pentium G6950 processor, up to 3.06GHz
Chipset	Intel 3450 PCH Chipset
BIOS	AMI BIOS
System Memory	Four DDR3 sockets, up to 16GB DDR SDRAM · Supports ECC with Xeon 3400
Integrated VGA	Intel Core™ i5/Pentium integrated · Supports CRT interface · Max. shared memory of 224MB
LAN	MGN1: INtel Nineveh Gigabit PHY (82578DM) w with AMT 6.0 support · LAN1~LAN6: Intel 82574L GbE NIC; supports SNMP, PXE and Wake-on-LAN · LAN1/2 and LAN3/4 bypass function
Audio	N/A
LPC I/O	W83627DHG chipset supports COM1, KB/mouse, Hardware Monitor
Serial ATA Interface	3x SATA II ports, 3Gb/s
Serial Ports	One RS-232 COM port
USB	2USB 2.0 ports
Watchdog Timer	Generates system reset; 256 levels
Hardware Monitoring	Monitors system/CPU temperature and voltage status
Expansion Slots	1x PCI-E(x16)[(x8)Link] · 1x PCI-E(x8)
Form Factor	Custom Size
Dimensions	355mm x 206mm
Power Consumption	TBD ()
Operating Temperature	0Â°C~60Â°C (32Â°F~140Â°F)
Storage Temperature	-20Â°C~80Â°C (-4Â°F~176Â°F)
Relative Humidity	10%~90% (non-condensing)

MB966
