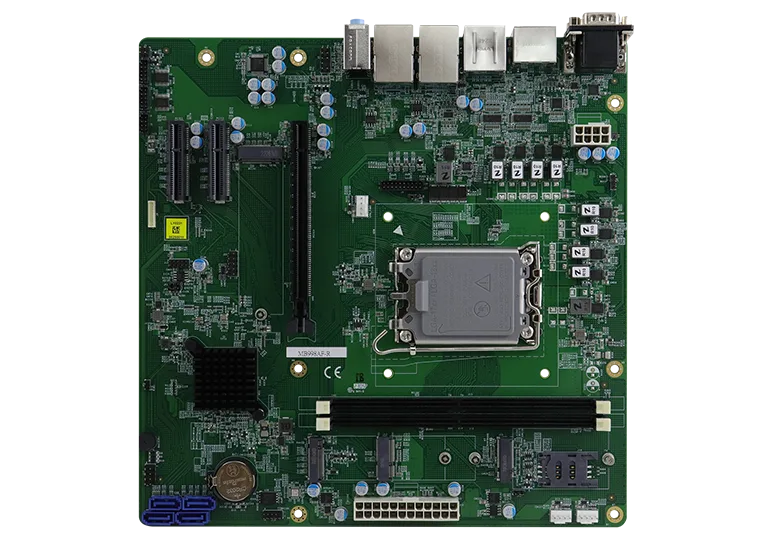

MB998
Micro ATX Motherboard with Intel® Core™ 200E / 200PE & 14th/13th/12th Core i LGA1700 processors
Micro ATX Motherboard with Intel® Core™ 200E / 200PE & 14th/13th/12th Core i LGA1700 processors. Local warranty support and engineering customization available on request.
Specifications
| CPU Socket | LGA1700 |
|---|---|
| CPU | Intel® Core™ 200E / 200PE & 14th/13th/12th Core i processors |
| PCH | MB998AF-R : Intel® R680E PCH (support ECC)MB998AF-Q : Intel® Q670E PCH |
| Memory | 2x DDR5 DIMM sockets, supports DDR5-4800/5600 memory module, Max. 64GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | SATA III & NVMe |
| Expansion Slots | 1x PCI-E (x16) [Gen.5.0], 1x PCI-E (x4) [Gen.4.0], 1x PCI-E (x4) [Gen.3.0] |
| Mini Type Slots | 2x M.2 (M-key, type:2280, PCI-E)1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E)1x M.2 (B-Key, type:3052, USB 3.1 + PCI-E) |
| Graphics Controller | 13th Gen Intel® Core™ i7/i5/i3 processor integrated |
| Video Output | 1x HDMI (2.0b) + 2x DisplayPort (1.4b) (DP++) + DVI-D |
| Ethernet | LAN 1: Intel® I226LM, supports 2.5G and iAMTLAN 2: Intel® I226V, supports 2.5G only |
| I/O Chip | Fintek F81964D-I |
| Serial Port | 4 COM port : 2x RS232/422/485 + 2x RS232 |
| USB 2.0 | 2x USB2.0 via pin-header |
| USB 3.X | 4x USB 3.2(10Gbps), 2x USB 3.1(5Gbps) @edge connector |
| Serial ATA | 4x SATA III |
| Audio | Built-in HD Audio controller + Realtek ALC888S with 7.1 channels |
| TPM | Supports fTPM |
| Others | Digital I/O (4-in/4-out) , Watchdog timer, SIM slot |
| Dimensions (L x W) | 244mm x 244mm (9.6“ x 9.6“) |
| Power Consumption | Intel® Core ™ I7-13700 2.10GHzw/w/2x 32GB DDR5 5600+12V:20.09A+5V:8.76A+3.3V:4.73A+5VSB:0.78A |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |

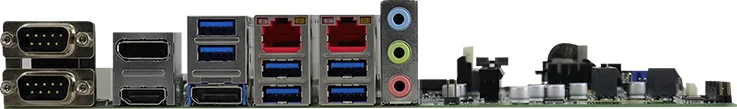

I/O — Rear panel
