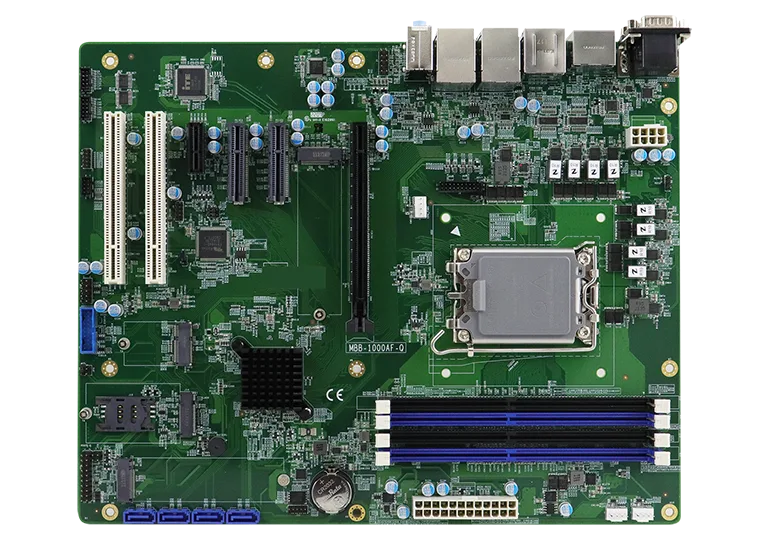

MBB-1000
ATX Motherboard with 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors
ATX Motherboard with 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors. Local warranty support and engineering customization available on request.
Specifications
| CPU Socket | LGA1700 |
|---|---|
| CPU | 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium®/ Celeron® processors |
| PCH | MBB-1000AF-R: Intel® R680E PCHMBB-1000AF-Q: Intel® Q670E PCH |
| Memory | 4x DDR4-3200 MHz, Max. 128GB (Supports ECC by CPU SKUs + PCH R680E) |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | NVMe |
| Expansion Slots | 1x PCI-E(x16) (Gen5.0), 2x PCI-E(x4) (Gen4.0),1x PCI-E(x1) (Gen3.0), 2x PCI |
| Mini Type Slots | 1x M.2 (M-Key, type:2280, supports NVMe with PCI-E(x4) signal only)1x M.2 (M-Key, type:2280)1x M.2 (E-Key, type: 2230, supports CNVi)1x M.2 (B-Key, type:3052, supports 4G/5G/LTE) |
| Graphics Controller | 12th Gen Intel® Core™ i9/i7/i5/i3 processors integrated |
| Video Output | 1x HDMI (2.0b), 1x DVI-D, 2x DisplayPort (1.4a) (DP++) |
| Ethernet | Intel® I225LM 2.5GbEIntel® I225V 2.5GbE |
| I/O Chip | Fintek F81964D-I |
| Serial Port | 2x RS232, 2x RS232/422/485 |
| USB 2.0 | 2x USB 2.0 via pin header |
| USB 3.X | 4x USB 3.1 Gen2 (10Gbps), 2x USB 3.1 Gen1 (5Gbps), 2x USB 3.1 Gen1(via box-header) |
| Serial ATA | 4x SATA 3.0 |
| Audio | Intel® R680E/ Q670E PCH-H built-in HD audio + RealtekALC888S codec |
| TPM | TPM (2.0) |
| Others | Digital I/O (4-in/4-out), iAMT (16.1), RAID |
| Dimensions (L x W) | 305mm x 244mm (12” x 9.6”) |
| Power Consumption | Intel® Core™ I7-13700 2.10GHz w/ 4x 16GB DDR4 3200 DIMMInnodisk M4U0-AGS1KCEM-A35 +12V:20.26A |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 95% (non-condensing @60°C) |
I/O — Rear panel
Front access
Where the MBB-1000 is deployed
Desktop-class compute in custom industrial enclosures and rack systems.
CNC controller hosts, robotic coordinators, and motion-control platforms.
Base platform for OEMs building their own industrial PC housings.
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
