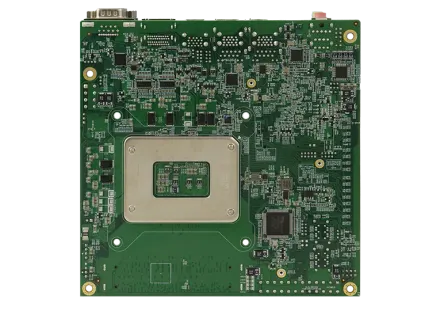

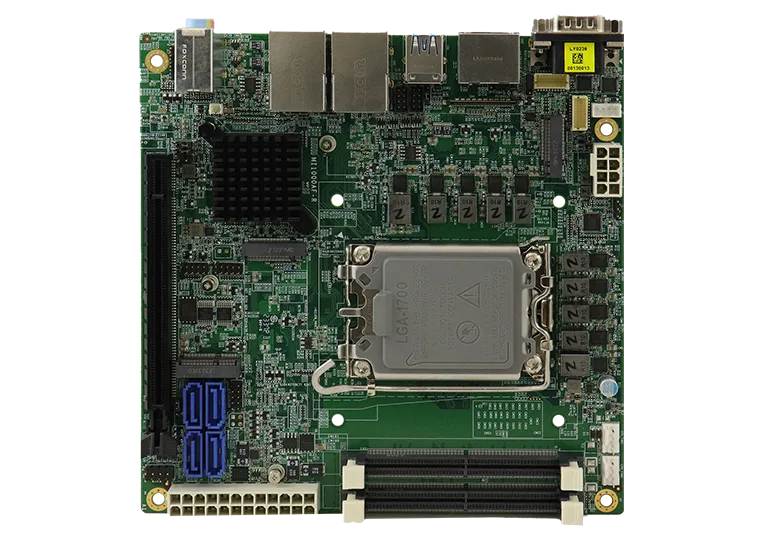

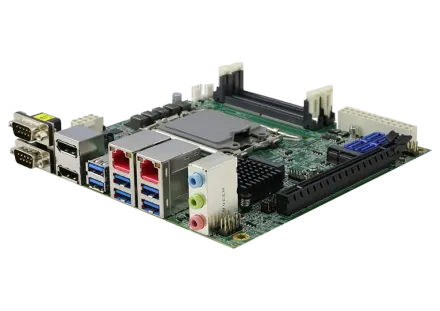

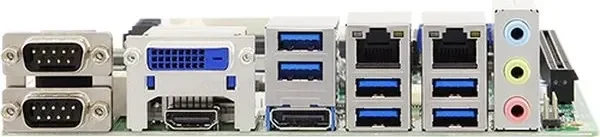

MI1000

Mini-ITX Motherboard with 14th/13th/12th Gen Intel® Core™ DT Processors (RPL-S Refresh Platform) with Intel® R680E PCH

Mini-ITX Motherboard with 14th/13th/12th Gen Intel® Core™ DT Processors (RPL-S Refresh Platform) with Intel® R680E PCH. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

LGA1700

MEMORY

2x DDR5 SO-DIMM sockets, supports DDR5 -5600 memory module , Max. 64GB*DDR5-5600 only by Core i7 Processor & 1R memory module*

STORAGE

SATA III & NVMe

DISPLAY

1x eDP + 2 x DisplayPort (1.4a) (DP++) + LVDS

Mini-ITX MotherboardMotherboard

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # MI1000 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

26 ROWS

CPU Socket	LGA1700
CPU	14th/13th/12th Gen Intel® Core™ i DT processors
PCH	R680E
Memory	2x DDR5 SO-DIMM sockets, supports DDR5 -5600 memory module , Max. 64GBDDR5-5600 only by Core i7 Processor & 1R memory module
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	SATA III & NVMe
Expansion Slots	1x PCI-E (x16) [Gen 5.0]
Mini Type Slots	2x M.2 (M-Key, type:2280, PCI-E(4x) Gen.4)1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E 3.0)
Graphics Controller	14th Gen Intel® RPL-S Refresh DT processor integrated Xe graphics architecture
Video Output	1x eDP + 2 x DisplayPort (1.4a) (DP++) + LVDS
Ethernet	LAN 1: Intel® I226LM , supports 2.5G and iAMTLAN 2: Intel® I226V, supports 2.5G only
I/O Chip	Fintek F81964D-I
Serial Port	2x COM ports: 1x RS232/422/485 + 1x RS232
USB 2.0	4x USB 2.0 via pin-headers
USB 3.X	2x USB 3.2 (10Gbps)+ 4x USB 3.2 (5Gbps) @edge connector
Serial ATA	4x SATA III
Audio	Built-in HD audio controller + Realtek ALC888S w/ 7.1 channels
TPM	Supports dTPM/ fTPM
Others	Digital I/O (4-in/4-out) , Watchdog timer, PDPC
Dimensions (L x W)	170mm x 170mm (6.7“x 6.7“)
Power Consumption	14th Gen Intel® Core™ i9-14900 w/ 2x 32GB DDR5 Transcend TS4GSA64V6E+12V:23.17A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
