MI1002

Name: MI1002
Brand: IBASE Technology
SKU: MI1002
Availability: InStock

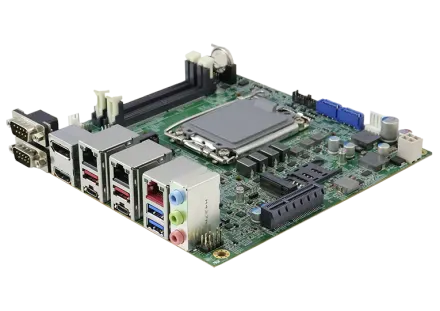

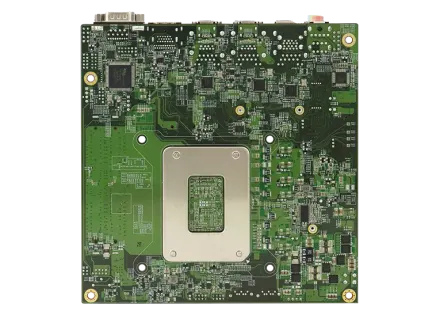

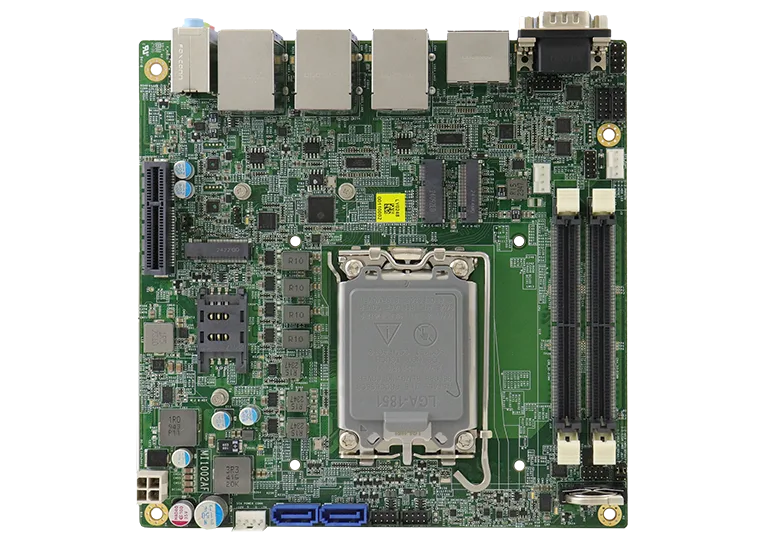

Mini-ITX Motherboard with Intel® Core Ultra 100 Series DT Processors (Meteor Lake-PS Platform)

Mini-ITX Motherboard with Intel® Core Ultra 100 Series DT Processors (Meteor Lake-PS Platform). Local warranty support and engineering customization available on request.

CPU

LGA1851

MEMORY

2x DDR5 SO-DIMM, Max. 64GB, Non-ECC

STORAGE

M.2 SSD (M2280 for NVMe)

DISPLAY

HDMI, DisplayPort, 2x Type-C

Mini-ITX MotherboardMotherboard

REQUEST QUOTE REQUEST DATASHEET

P/N # MI1002

Specifications

26 ROWS

CPU Socket	LGA1851
CPU	Intel® Core Ultra 100 series DT processors
PCH	N/A
Memory	2x DDR5 SO-DIMM, Max. 64GB, Non-ECC
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	M.2 SSD (M2280 for NVMe)
Expansion Slots	1x PCI-E (x4)
Mini Type Slots	1x M.2 (M-Key, Type:2280, supports NVMe)1x M.2 (E-Key, Type:2230, supports CNVi)1x M.2 (B-Key, Type:3052, supports 5G/LTE
Graphics Controller	Intel® Core™ Ultra Processor integrated Iris® Xe graphics

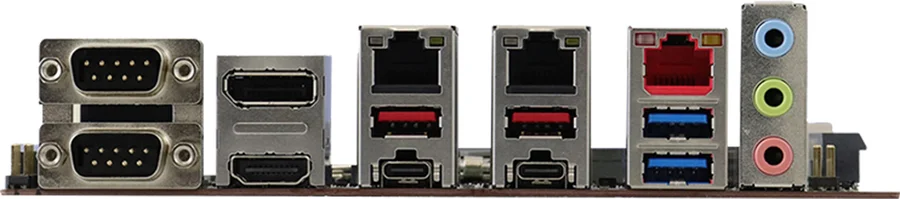

Video Output	HDMI, DisplayPort, 2x Type-C
Ethernet	Intel® I226LM as 1st LAN, I226V as 2nd and 3rd LAN
I/O Chip	Fintek F81964D-I on board
Serial Port	COM1/COM2 (RS232/422/485); COM3/COM4 (RS232 only)
USB 2.0	4x USB 2.0 via pin-header
USB 3.X	6x USB 3.2 (4x Type-A+ 2x Type-C)
Serial ATA	2x SATA III
Audio	HDA controller + Realtek codec ALC888S-VD2
TPM	dTPM, fTPM is option
Others	Digital I/O (4-in/4-out); RAID, iAMT(18.0), +12V~+24V DC-in
Dimensions (L x W)	170mm x 170mm
Power Consumption	Intel® Core™ Ultra 7 165HL w/ 2x DDR5 5600 16GB +24V : 6.98A
Operating Temperature	0°C ~ 60°C (32°F~140°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	90% (non-condensing @60°C)
