MI801

Name: MI801
Brand: IBASE Technology
SKU: MI801
Availability: InStock

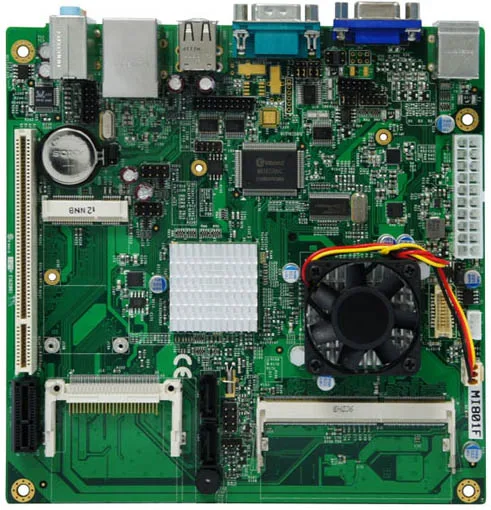

Intel® ICH8M Chipset Intel® Atom™ D525 Mini-ITX Motherboard - MI801

Intel® ICH8M Chipset Intel® Atom™ D525 Mini-ITX Motherboard - MI801. Local warranty support and engineering customization available on request.

CPU

Onboard Intel® Atom™ processors D525 DC · 1.80GHz

MEMORY

1x DDR3-800 SO-DIMM · Max. 4GB, Non ECC

STORAGE

-20°C~80°C (-4°F~176°F)

ETHERNET

Realtek 8111E PCI-E Gigabit LAN · RJ-45 on board

P/N # MI801

21 ROWS

CPU	Onboard Intel® Atom™ processors D525 DC · 1.80GHz
Chipset	Intel® 82801HM I/O Controller · ICH8M
BIOS	AMI BIOS
System Memory	1x DDR3-800 SO-DIMM · Max. 4GB, Non ECC
Integrated VGA	Intel® ICH8M integrated Graphics Media Accelerator (GMA 3150) · Supports CRT · LVDS · Supports 18-bit single channel LVDS
LAN	Realtek 8111E PCI-E Gigabit LAN · RJ-45 on board
Audio	ICH8M integrated audio controller with ALC662 codec
LPC I/O	Winbond 83627UHG-P chipset · 4x RS232, 1x KB, 1x mouse, 2x SATA II
Serial Ports	Four RS-232 COM ports
Serial ATA	Supports 2 SATA II ports
USB (2.0)	Supports 8 USB ports (4 ports + 4 ports via pin header)
Watchdog Timer	Generates system reset; 256 levels
Digital I/O	4 in / 4 out
Power Connector	DC power jack for 12V~24V input
Expansion Slots	1x PCI, 1x PCI-E (x1), 1x Mini PCI-E

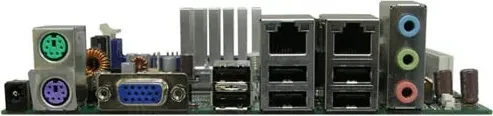

Edge Connectors	PS/2 keyboard/mouse, VGA, COM, RJ-45, 4x USB, Triple jack for audio
Form Factor	Mini-ITX Motherboard
Dimensions	170mm x 170mm · Power Consumption · TBC
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)
