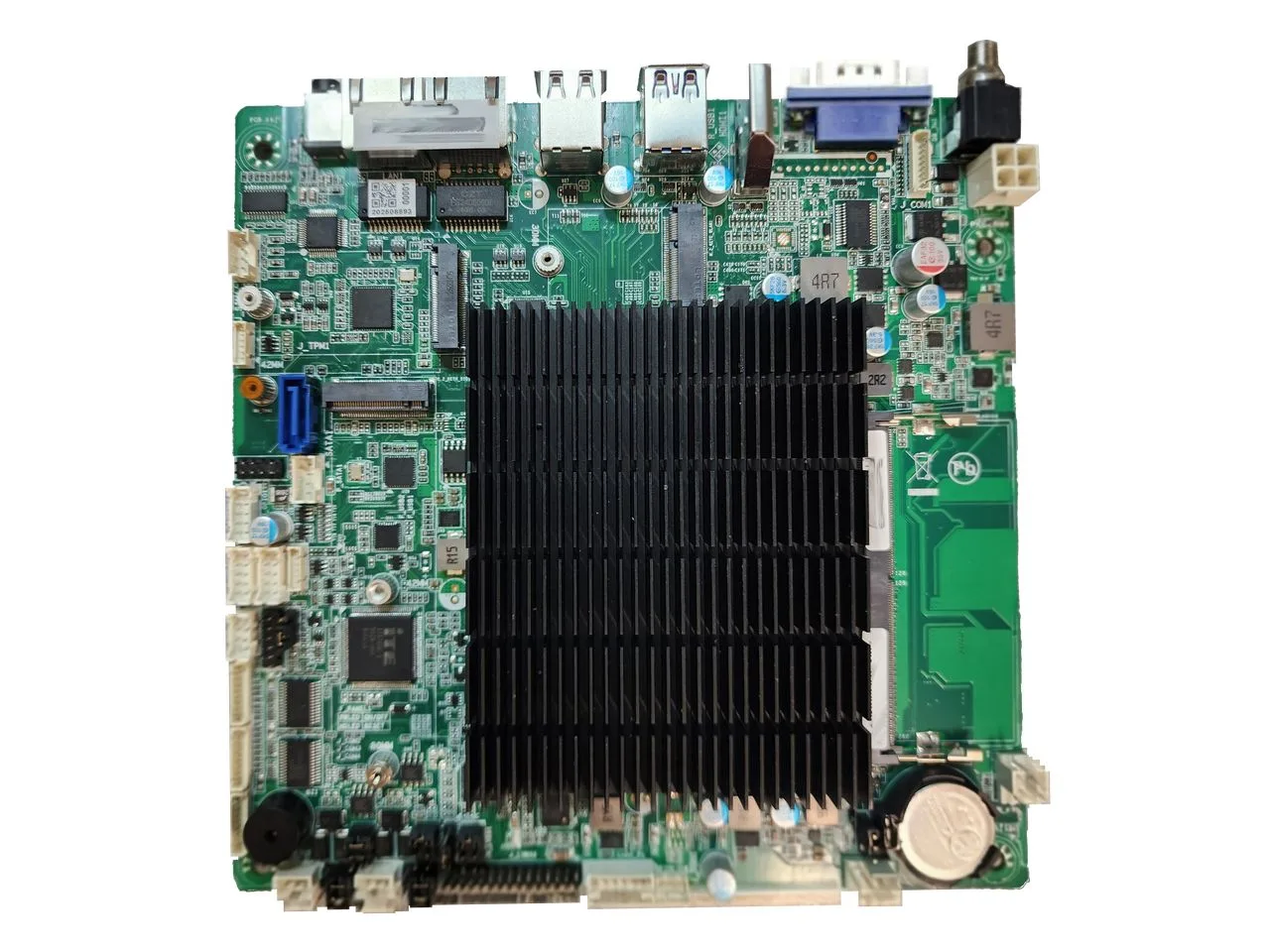

MI8385F

Intel Alder Lake-N CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2

Intel Alder Lake-N CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel Alder Lake-N N50, Core i3-N300 CPU

MEMORY

DDR4-3200, 1*SO-DIMM, up to 16GB

STORAGE

1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD)

DISPLAY

1xHDMI: max resolution up to 4096*2160@60Hz · 1x VGA

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT MI8385F — IBASE Technology

Specifications

19 LIGNES

CPU	Intel Alder Lake-N N50, Core i3-N300 CPU
Memory	DDR4-3200, 1*SO-DIMM, up to 16GB
Storage	1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD)
Expansion Interface	3xM.2 (Key-M, Key-B, Key-E)
BIOS	AMI UEFI BIOS
Serial	6x RS232
USB	4x USB 3.0, 7x USB 2.0
Audio	Realtek 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
Parallel	1x LPT Header
Display Interface	1xHDMI: max resolution up to 4096*2160@60Hz · 1x VGA
Display Channel	Triple
Ethernet	2x Intel 2.5Gbps PCIe Ethernet Controller, RJ45
GPIO	8x Programmable GPIO
Dimension	170x170mm
Power Input	DC 12V
Others	1x Cash Drawer Control Wafer, 1x I2C Touch Wafer, 1x Case Open Header
Operating	0~60oC 10%~90%
Storage	-25~+75oC at 5%~95%, non-condensing
Compatible OS	Windows 10/11, Linux

Ordering Information

2 LIGNES

MI8385F	- Intel N95 Low Power Dual Core SoC on board, Mini-iTx SBC
MI8386F	- Intel Core X7211E Low Power Dual Core SoC on board, Mini-iTx SBC
