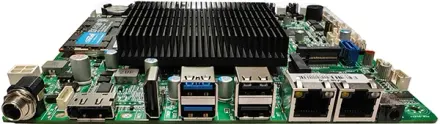

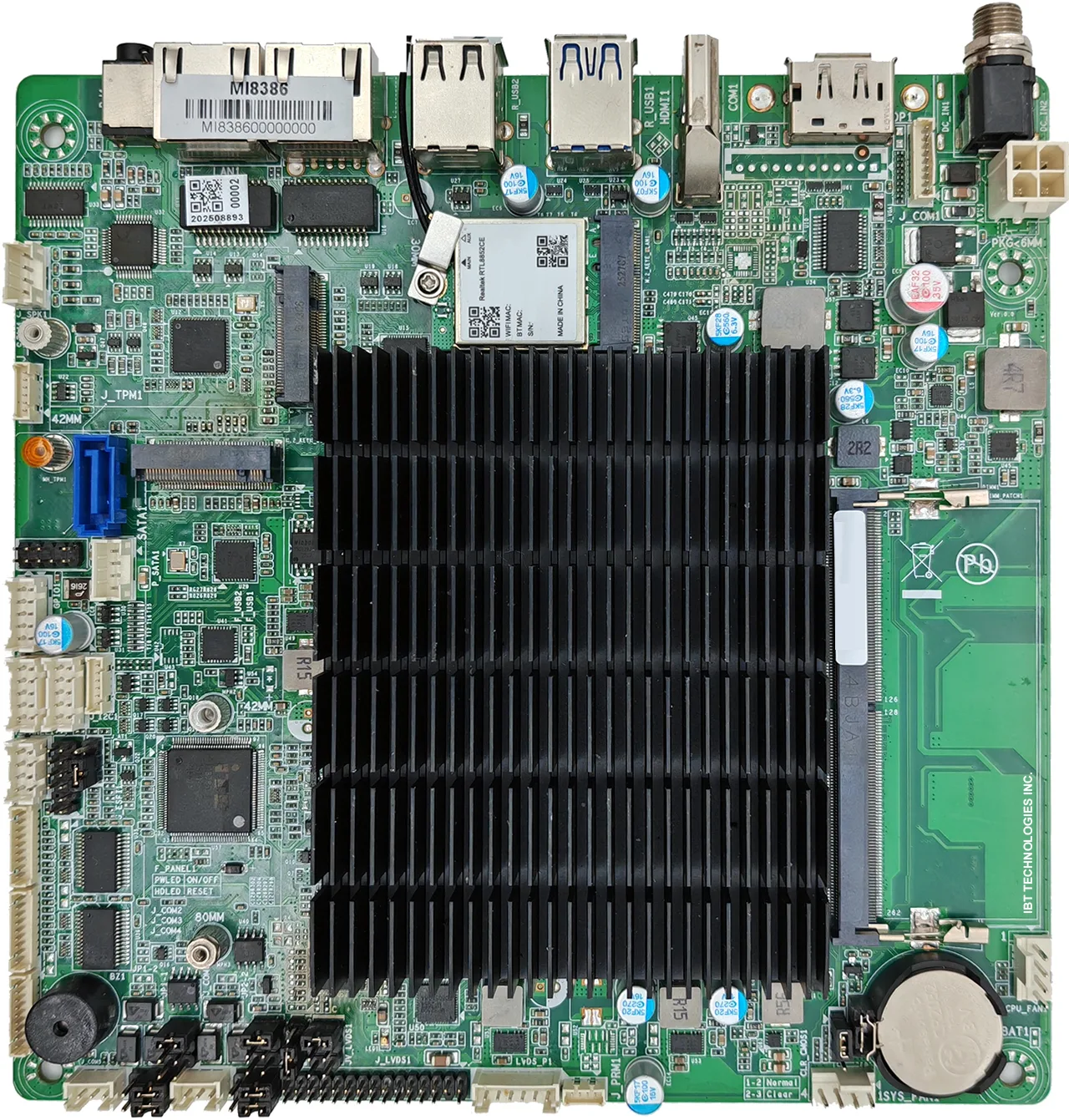

MI8386F

Intel X7211E CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2

Intel X7211E CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

Intel X7211E CPU

MEMORY

DDR5-4800, 1*SO-DIMM, up to 16GB

STORAGE

1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD)

DISPLAY

1xHDMI: max resolution up to 4096*2160@60Hz · 1x optional VGA share the same place with HDMI and USB on I/O

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # MI8386F — IBASE Technology

Specifications

19 ROWS

CPU	Intel X7211E CPU
Memory	DDR5-4800, 1*SO-DIMM, up to 16GB
Storage	1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD)
Expansion Interface	1xM.2 (Key-E, 2230, PCIe+USB 2.0, Wifi+BT) · 1xM.2 (Key-B, 2242, PCIe/5G
BIOS	AMI UEFI BIOS
Serial	6x RS232
USB	4x USB 3.0, 7x USB 2.0
Audio	Realtek 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
Parallel	1x LPT Header
Display Interface	1xHDMI: max resolution up to 4096*2160@60Hz · 1x optional VGA share the same place with HDMI and USB on I/O
Display Channel	Triple
Ethernet	1x Realtek 1Gbps PCIe Ethernet Controller, RJ45
GPIO	8x Programmable GPIO
Dimension	170x170mm
Power Input	DC 12V
Others	1x Cash Drawer Control Wafer, 1x I2C Touch Wafer, 1x Case Open Header
Operating	0~60oC 10%~90%
Storage	-25~+75oC at 5%~95%, non-condensing
Compatible OS	Windows 10/11, Linux

Ordering Information

3 ROWS

MI8386F	- Mini-iTx SBC, Intel Core X7211E Low Power Dual Core SoC on board, Dual LAN
MI8385F	- Intel Core X7211E Low Power Dual Core SoC on board, Mini-iTx SBC Dual Lan
MI8380F	- Intel Core X7211E Low Power Dual Core SoC on board, Mini-iTx SBC Dual Lan
