| CPU Socket | Socket P |
| CPU | Intel™ Core™2 Duo Up to 2.53GHz or above |
| CPU Front Side Bus ( FSB ) | 667 / 800 / 1066MHz |
| Chipset | Intel™ GM45 + ICH9M |
| System Memory | Two SO-DIMM DDR2 sockets, up to 8 GB · 667/800MHz DDR2 no ECC |
| Video Integrated | built-in · VGA CRT, LVDS interface · Daughter card supported. |
| LAN | Dual Intel Gigabits Lan - Intel 82567LM Gigabit LAN - Intel 82574L PCI-E Gigabit LAN · RJ-45 on board |
| Audio | ICH9M built-in audio + AC97 codec 7.1 ALC888 · (Line out, Line, Mic jacks on board) |
| LPC I/O | W83627EHG+Fintek chipset supports 3xCOM(RS232), 1xCOM(RS232/422/485), Hardware Monitor |
| Serial ATA Interface | 4x SATA II ports, 3Gb/s |
| PATA Interface (IDE) | 1xIDE using (PCI-E ot PATA) 2 IDE devices featuring UDMA33/66/100 · Processor Socket P · Supports Intel™ Core™2 Duo processors · Up to 2.53GHz, 667/800/1066MHz FSB · DDR2 SO-DIMM x2, Max. 8 GB · Single or dual Gigabit LAN · Integrated GM45 VGA for CRT · 8x USB 2.0, 4x SATA II, 4x COM, 1xIDE40, 1xCF · PCI-E(x1), PCI(32), Mini PCI-E, Bus Addon |
| Serial Ports | 1x RS-232/422/485 and 3x RS-232 ports |
| USB (2.0) | 8 USB 2.0 ports (4 on board, 4 via pin header) |
| Digital I/O | 4 in / 4 out |
| BIOS | Award BIOS, ACPI supported |
| Watchdog Timer | Generates system reset; 256 levels |
| Hardware Monitoring | Monitors system/CPU temperature and voltage status |
| Expansion Slot | 1x PCI-E (x1) , 1x Mini-PCIe 1x PCI (supports 2 masters) 16-pin header for daugther board |

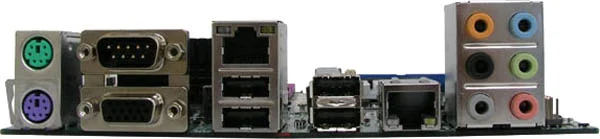

| Edge Connectors | PS/2 keyboard and mouse, COM1, VGA, stack RJ45 + 2x USB stack, 2x USB, RJ45, Audio 7.1 |
| Power Connector | ATX, 20-pin |
| Form Factor | Mini-ITX |
| Dimensions | 170mm x 170mm (6.7" x 6.7") |
| Environmental Factors | Power Comsumption: TBC Intel™ Core™2 Duo T9400 2.53GHz w/ 2GB DDR2-667 +12V: 2.01A +5V: 0.45A +3.3V: 0.82A · Operating Temperature: 0°C~60°C (32°F~140°F) · Storage Temperature: -20°C~80°C (-4°F~176°F) · Relative Humidity: 10%~90% (non-condensing) |
