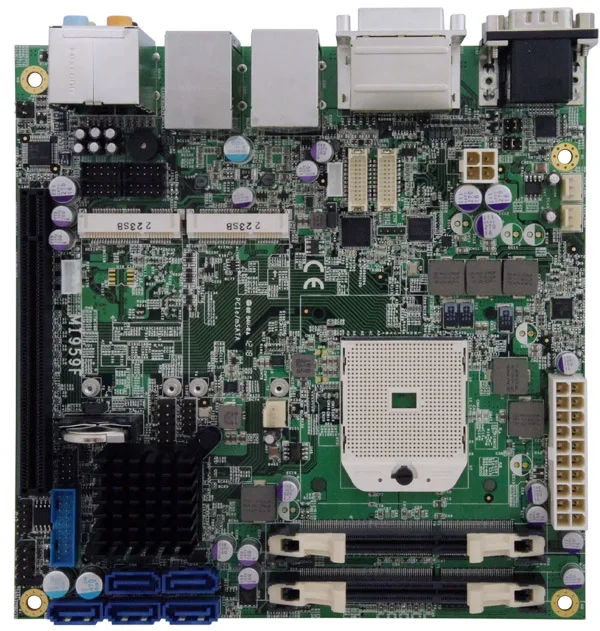

MI959

Sockt FS1r2 AMD R-Series Mini-ITX Motherboard /w AMD A70M FCH

Sockt FS1r2 AMD R-Series Mini-ITX Motherboard /w AMD A70M FCH. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

AMD Socket FS1r2

MEMORY

Two DDR3 SO-DIMM sockets · up to 8GB, non-ECC, 1333/1066/800

STORAGE

-20°C~80°C (-4°F~176°F)

ETHERNET

2x Realtek 8111E Gigabit LAN · RJ-45 on board

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # MI959 — IBASE Technology

Specifications

23 ROWS

CPU Socket	AMD Socket FS1r2
CPU	AMD R-Series, up to 3.1GHz
Chipset	AMD A70M FCH
BIOS	AMI
System Memory	Two DDR3 SO-DIMM sockets · up to 8GB, non-ECC, 1333/1066/800
Integrated VGA	AMD A70M built-in Radeon HD7000 series graphics core · Shared memory · Onboard DVI-I, DisplayPort and 24-bit dual channel LVDS
LAN	2x Realtek 8111E Gigabit LAN · RJ-45 on board
Audio	Built-in HD audio with ALC892 codec for 7.1 channels
LPC I/O	Nuvoton NCT6106D
Serial Ports	1x RS-232/422/485 and 5x RS-232 ports
Serial ATA Interface	5x SATA III ports
USB	4 USB 3.0 ports · 4 USB 2.0 ports
Digital I/O	4 in / 4 out
Watchdog Timer	Generates system reset; 256 levels
Expansion Slots	1x PCI-E (X16) · 2x Mini PCI-E - w/ USB signal (2x full-Size)
Other Features	iSMART · 1x mSATA
Power Connector	ATX, 20-pin
Form Factor	Mini-ITX
Dimensions	170mm x 170mm (6.7" x 6.7")
Power Consumption	TBC
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)
