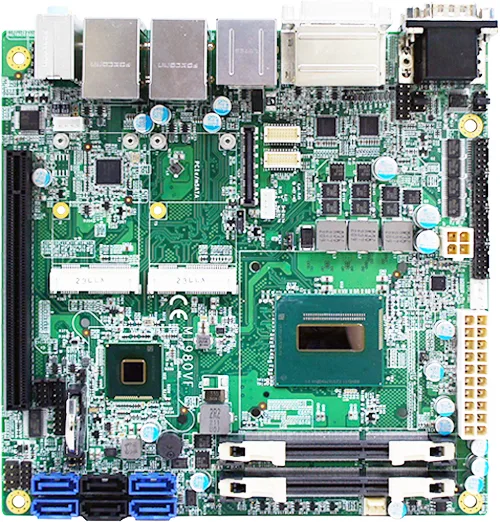

MI980

Onboard 4th Generation Intel® Core™ i7/i5 processors based on the mobile Intel® QM87 and HM86 Express chipsets

Onboard 4th Generation Intel® Core™ i7/i5 processors based on the mobile Intel® QM87 and HM86 Express chipsets. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

BGA1364 for 4th generation Intel® mobile Core i7/i5 processors

MEMORY

2x DDR3/DDR3L SO-DIMM, Max. 16GB (Non-ECC)

STORAGE

1x mSATA via Mini PCI-E (Thru SATA III)

DISPLAY

Supports 24-bit dual channel LVDS/eDP, DVI-I, DVI-D, DisplayPort

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT MI980 — IBASE Technology

Specifications

22 LIGNES

CPU Type	BGA1364 for 4th generation Intel® mobile Core i7/i5 processors
System Memory	2x DDR3/DDR3L SO-DIMM, Max. 16GB (Non-ECC)
System Chipset	Intel® QM87 PCH (MI980VF) / HM86 PCH ( MI980F)
BIOS	AMI
Watchdog Timer	256 levels
SSD	1x mSATA via Mini PCI-E (Thru SATA III)
H/W Monitor	Yes
Expansion Slot	1x PCI-E(x16), 2x Mini PCI-E(x1)
VGA Controller	4th Generation Intel® Core i7/i5/i3 / Celeron® integrated Gfx, supports CRT, DVI, DisplayPort, LVDS / eDP
VGA Memory	Max. Shared memory – 1024MB
Display Interface	Supports 24-bit dual channel LVDS/eDP, DVI-I, DVI-D, DisplayPort
Controller	MI980VF: Intel® I217LM Gigabit LAN PHY · MI980F: Intel® I217V Gigabit LAN PHY · MI980 Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)

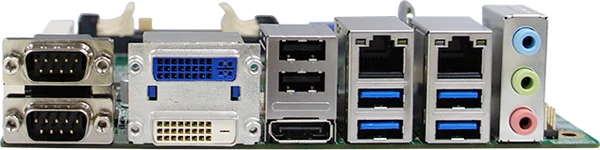

Connector	2x RJ-45 on board
Chipset	Fintek F81866AD-I · 1x RS-232/422/485 (jumperless selection) · 5x RS232 · MI980VF: 4x SATA III, 2x SATA II · MI980F: 2x SATA III, 2x SATA II
USB	2 ports on board, 4 ports via pin-header (USB 2.0) · 4 ports on board (USB 3.0)
Audio	Intel® QM87 / HM86 PCH built-in HD audio controller + ALC892 w/ 7.1 channels
Others	Digital I/O (4-in/4-out), ATX power connector, iSMART support
Dimensions	170mm x 170mm (6.7" x 6.7")
Max. Power Requirement	TBC
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)
