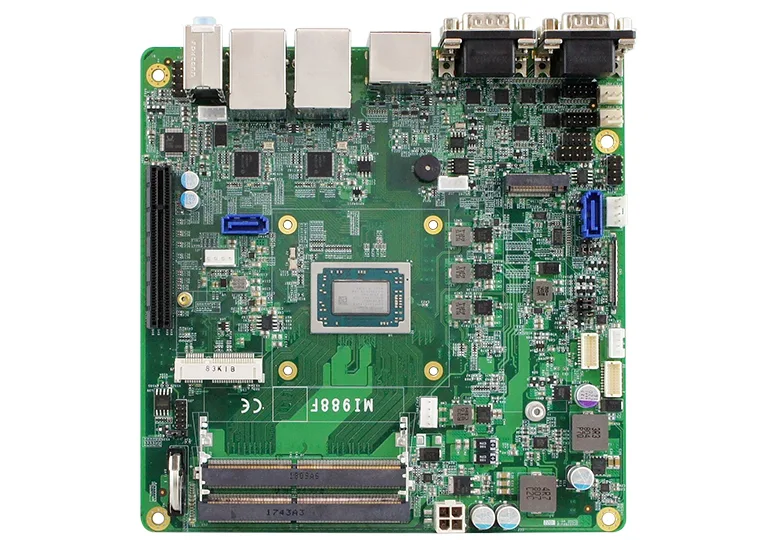

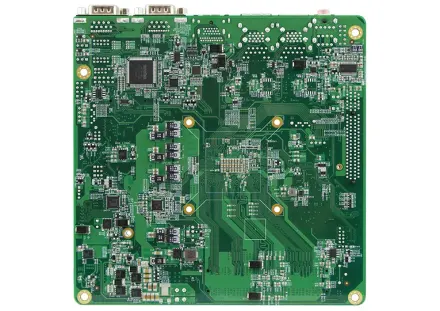

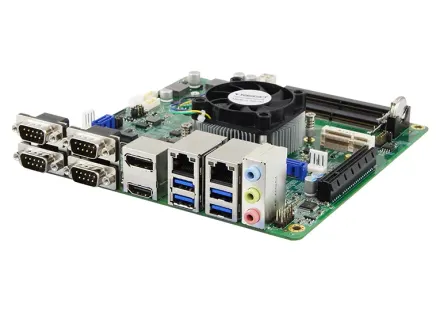

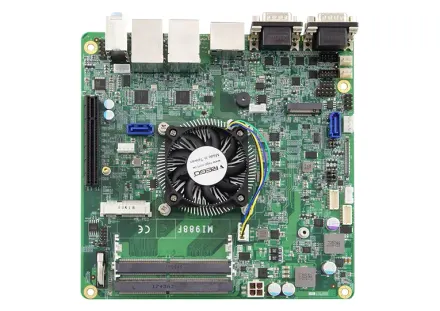

MI988

Mini-ITX Motherboard with AMD Ryzen™ Embedded R2000/V1000 Series Processors

Mini-ITX Motherboard with AMD Ryzen™ Embedded R2000/V1000 Series Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

BGA 1140 APU on board

MEMORY

DDR4 SO-DIMM, supports ECC2x DDR4-2666, Max. 32GB

STORAGE

1x M.2 (supports NVMe)

DISPLAY

1x HDMI (2.0a), 1x DisplayPort (1.2)1x eDP or 1x 24-bit dual-channel LVDS

Mini-ITX MotherboardMotherboard

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # MI988 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

26 ROWS

CPU Socket	BGA 1140 APU on board
CPU	AMD Ryzen™ Embedded R2000/V1000 Series on board
PCH	N/A
Memory	DDR4 SO-DIMM, supports ECC2x DDR4-2666, Max. 32GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x M.2 (supports NVMe)
Expansion Slots	1x PCI-E (x8), 1x M.2 (M-Key, type: 2280)
Mini Type Slots	1x Mini PCI-E
Graphics Controller	AMD Radeon™ Vega GPU integrated

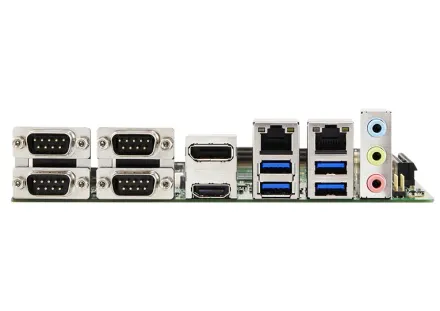

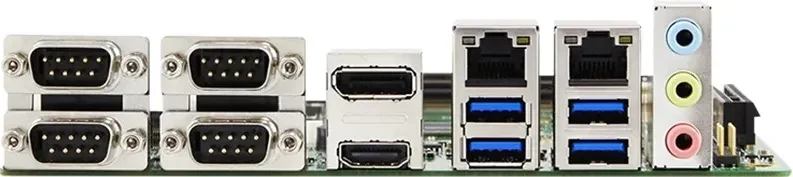

Video Output	1x HDMI (2.0a), 1x DisplayPort (1.2)1x eDP or 1x 24-bit dual-channel LVDS
Ethernet	2x Intel® I211AT or I210AT Gigabit LAN
I/O Chip	Nuvoton NCT6116D
Serial Port	2x RS232/422/485 (jumper-less selection)4x RS232
USB 2.0	N/A
USB 3.X	4x USB 3.1 on board
Serial ATA	2x SATA III
Audio	Built-in HD audio + Realtek ALC888S codec
TPM	N/A
Others	Digital I/O (4-in/4-out), iSMART, +12V~+24V DC-in
Dimensions (L x W)	170mm x 170mm (6.7" x 6.7")
Power Consumption	AMD Ryzen™ Embedded V1807B 3.35GHzw/ 2x 8GB DDR4-2133+24V: 2.55A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
