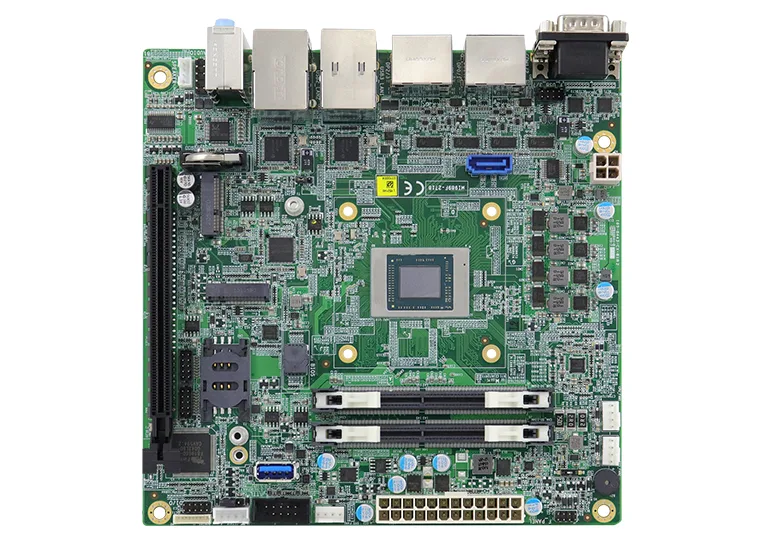

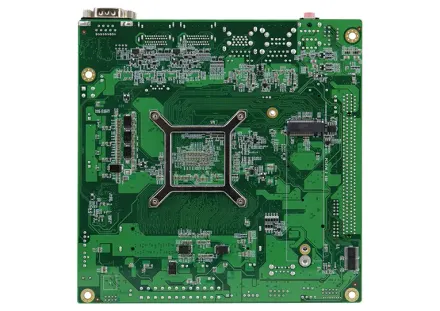

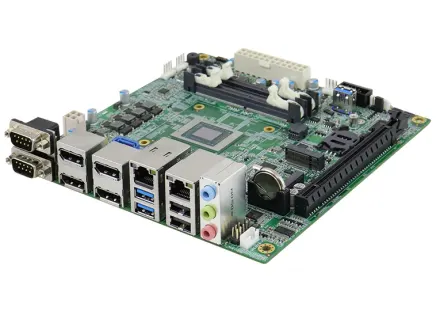

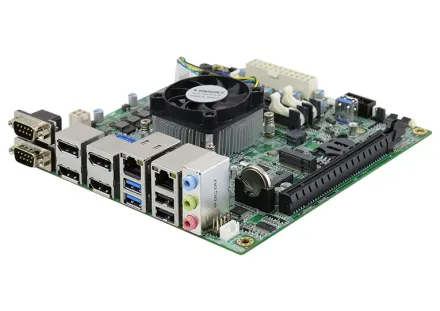

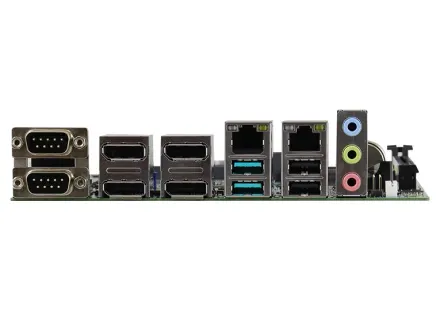

MI989

Mini-ITX Motherboard with AMD Ryzen™ Embedded V2000 Series Processors

Mini-ITX Motherboard with AMD Ryzen™ Embedded V2000 Series Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

BGA1140

MEMORY

2x DDR4-3200 SO-DIMM socket, Max 64GB, ECC compatible

STORAGE

2x M.2 (B-Key/ M-key)

DISPLAY

4x DisplayPort 1.4

Mini-ITX MotherboardMotherboard

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # MI989 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

26 ROWS

CPU Socket	BGA1140
CPU	AMD V2000 series APU on board
PCH	N/A
Memory	2x DDR4-3200 SO-DIMM socket, Max 64GB, ECC compatible
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	2x M.2 (B-Key/ M-key)
Expansion Slots	1x PCI-E (x16)
Mini Type Slots	1x M.2 (E-Key, type:2230)1x M.2 (B-Key, type:3052)1x M.2 (M-Key, type:2280, NVMe)
Graphics Controller	AMD Radeon™ Graphics
Video Output	4x DisplayPort 1.4
Ethernet	2x Intel® I211AT or I210AT Gigabit LAN
I/O Chip	F81966D-I
Serial Port	4x COM Port
USB 2.0	2x USB 2.0
USB 3.X	3x USB 3.1 (10Gbps)
Serial ATA	1x SATA 3.0
Audio	built-in HD audio + Realtek ALC888S codec
TPM	2.0
Others	Digital I/O, SIM socket
Dimensions (L x W)	170mm x 170mm (6.7" x 6.7")
Power Consumption	AMD Ryzen™ Embedded V2748 2.9GHz w/ 1x 8GB DDR4-3200 (Onboard or SO-DIMM) +12V: ~3.5AAMD Ryzen™ Embedded V2718 1.7GHz w/ 1x 8GB DDR4-3200 (Onboard or SO-DIMM) +12V: ~2.7A
Operating Temperature	0°C~ 60°C (32°F~140°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	95% (non-condensing @60°C)
