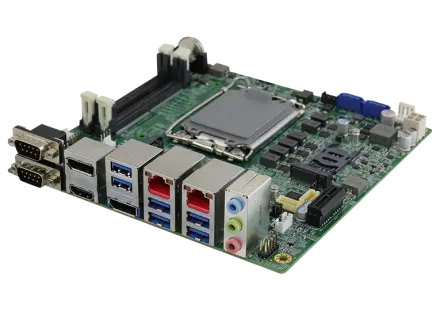

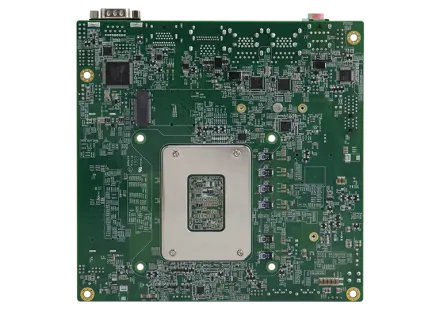

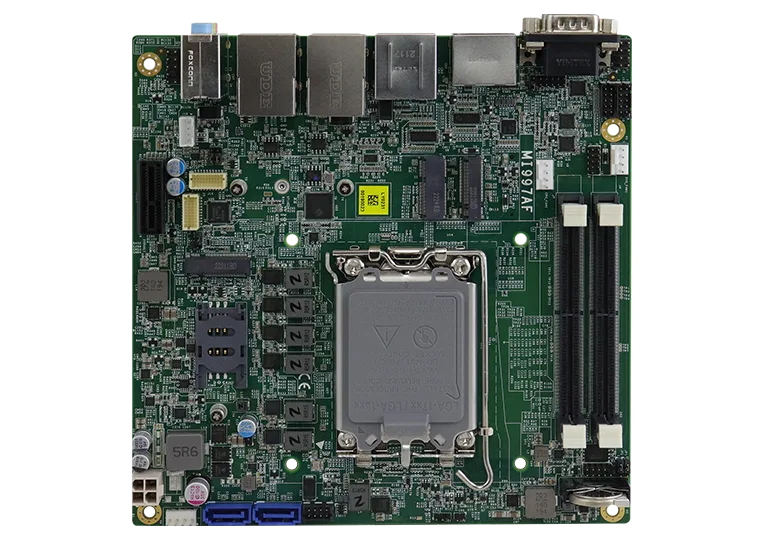

MI997

Mini-ITX Motherboard with 12th Gen Intel® Core™ and Celeron® socketed SoC processors (formerly Alder Lake PS)

Mini-ITX Motherboard with 12th Gen Intel® Core™ and Celeron® socketed SoC processors (formerly Alder Lake PS). Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

LGA1700

MEMORY

2x DDR5 SO-DIMM sockets, supports DDR5-4800 memory module, Max. 64GB

STORAGE

SATA III & NVMe

DISPLAY

1x HDMI (2.0a) + 2x DisplayPort (1.4a) (DP++) + LVDS

Mini-ITX MotherboardMotherboard

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # MI997 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

26 ROWS

CPU Socket	LGA1700
CPU	12th Gen Intel® Core™ i7/i5/i3 and Celeron® socket SoC Processors (formerly Alder Lake PS)
PCH	N/A
Memory	2x DDR5 SO-DIMM sockets, supports DDR5-4800 memory module, Max. 64GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	SATA III & NVMe
Expansion Slots	1x PCI-E (x1) [Gen.3.0]
Mini Type Slots	2x M.2 (M-Key, type:2280, PCI-E(4x) Gen.4)1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E(1x))1x M.2 (B-Key, type:3052, USB 3.2 + PCI-E(1x))
Graphics Controller	12th Gen Intel® Core™ i7/i5/i3 and Celeron® Processors

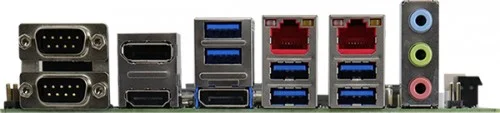

Video Output	1x HDMI (2.0a) + 2x DisplayPort (1.4a) (DP++) + LVDS
Ethernet	LAN 1: Intel® I226LM, supports 2.5G and iAMTLAN 2: Intel® I226V, supports 2.5G only
I/O Chip	Fintek F81964D-I
Serial Port	4 COM ports : 2x RS232/422/485 + 2x RS232
USB 2.0	2x USB 2.0 via pin-header
USB 3.X	6x USB 3.2 (10 Gbps) @ edge connector
Serial ATA	2x SATA III
Audio	Built-in HD Audio controller + Realtek ALC888S w/ 7.1 channels
TPM	Supports fTPM
Others	12V~24V DC-in, Digital I/O (4-in/4-out), Watchdog timer, SIM socket
Dimensions (L x W)	170mm x 170mm (6.7" x 6.7")
Power Consumption	Intel® Core™ i7-12700HLw/ 2x 32GB DDR5-4800+12V:13.21A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
