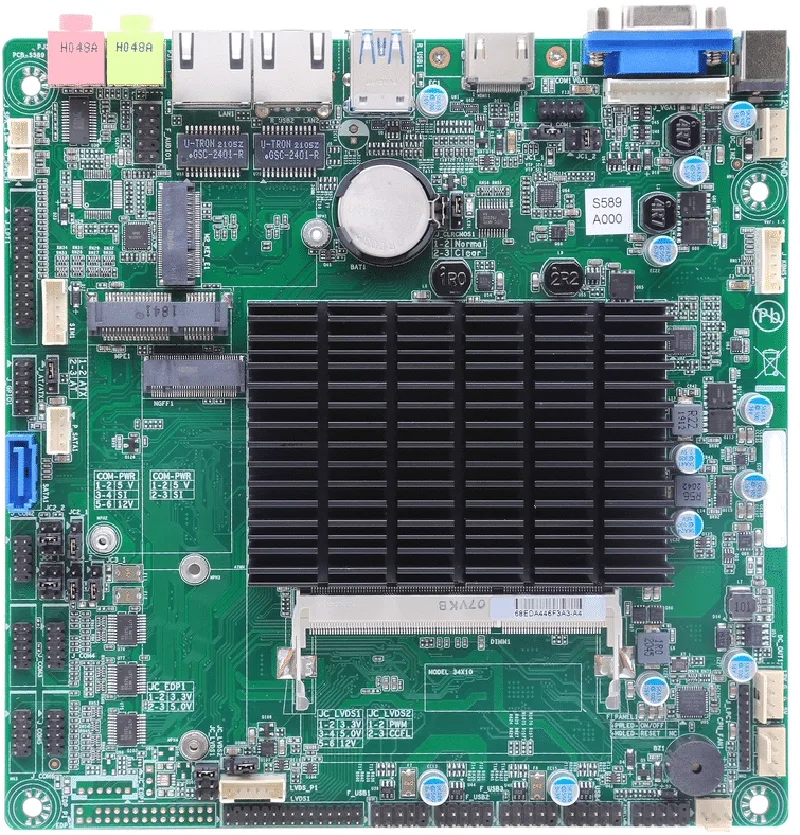

MIJ3455

Thin-iTx with SoC Intel Processor,Q470E Chipset and Dual LAN/w Intel Celeron Apollo Lake J3455 CPU Quad-Core, up to 2.3 GHz, TDP 10W

Thin-iTx with SoC Intel Processor,Q470E Chipset and Dual LAN/w Intel Celeron Apollo Lake J3455 CPU Quad-Core, up to 2.3 GHz, TDP 10W. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

Intel Celeron Apollo Lake J3455 CPU Quad-Core, up to 2.3 GHz, TDP 10W

MEMORY

DDR3L 1333/1600/1866 MHz, 1 x SO-DIMM, up to 8 GB

STORAGE

1 x SATA III 7P connector, 1 x M.2 Key-B slot (SATA SSD, 2242/2280)

DISPLAY

1 x VGA (Up to 1920 x 1200 @ 60Hz) · 1 x HDMI (Up to 3840 x 2160 @ 30Hz) · 1 x LVDS (Up to 1920 x 1200 @ 60Hz)

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # MIJ3455 — IBASE Technology

Specifications

22 ROWS

CPU	Intel Celeron Apollo Lake J3455 CPU Quad-Core, up to 2.3 GHz, TDP 10W
Chipset	Intel SoC integrated
System Memory	DDR3L 1333/1600/1866 MHz, 1 x SO-DIMM, up to 8 GB
BIOS	AMI
COM	6 x RS-232
USB	2 x USB 3.0 · 7 x USB 2.0
Ethernet	2 x RJ-45, Realtek Giga LAN
Display	1 x VGA (Up to 1920 x 1200 @ 60Hz) · 1 x HDMI (Up to 3840 x 2160 @ 30Hz) · 1 x LVDS (Up to 1920 x 1200 @ 60Hz)
Digital I/O	Programmable support 8-bit GPIO
Audio	1 x Mic-in / 1 x Line-out
Storage	1 x SATA III 7P connector, 1 x M.2 Key-B slot (SATA SSD, 2242/2280)
Expansion	1 x Mini PCIe (1 x Wifi/3G/4G, with 1 x SIM card Header) · 1 x M.2 Key-E Slot (Wifi+BT, 2230)
Others	1 x System/CPU FAN Header, 1 x PS/2 Keyboard/Mouse
Battery	Yes
Power Requirements	DC-in 12V
Watchdog Timer	1 - 255 steps by software program
Hardware Monitoring	Support
Dimensions	170 x 170 mm
Board Thickness	Thin iTx
Certifications	CE, FCC
Operating Temperature	0°C to +60°C
Relative Humidity	10% to 95% relative humidity, non-condensing

Features

5 ROWS

Feature 1	Embedded Intel J3455 Quad-Core TDP 10W
Feature 2	Dual Intel GbE
Feature 3	Total of 9 USBs
Feature 4	Total of 3 Video Channels
Feature 5	Input 12v DC low power

Ordering Information

1 ROWS

MIJ-3455

- 3.5" Embedded SBC Intel Celeron J3455, up to 8GB DDR4 RAM, VGA/HDMI, 1xLVDS/eDP, 2xGbit LAN, 1xSATA, 1xM.2 Key-B, 1xM.2 Key-M, 6xCOM, 10xUSB, Audio, 10%..95RH, 12V DC-in
