PANEL PCS / IN STOCK

BST1850

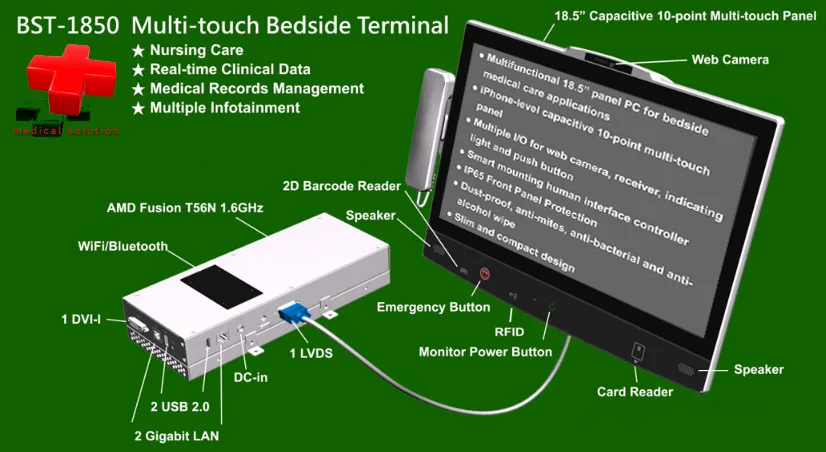

18.5-inch Capacitive Multi-Touch Panel PC for Bedside Terminal made for medical application in mind

18.5-inch Capacitive Multi-Touch Panel PC for Bedside Terminal made for medical application in mind. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

AMD Fusion T56N 1.6GHz‧ · AMD A55E *Changing to the power saving type CPU is possible

MEMORY

2GB DDR3-1066

STORAGE

16GB SSD * High-capacity by HDD is possible

DISPLAY

Touch panel function (Capacitance), · 18.5-inch wide, LCD (16:9), 1366 x 768 dots

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # BST1850 — IBASE Technology

Specifications

8 ROWS

LCD Touch Panel Display	Touch panel function (Capacitance), · 18.5-inch wide, LCD (16:9), 1366 x 768 dots
CPU / Chipset	AMD Fusion T56N 1.6GHz‧ · AMD A55E *Changing to the power saving type CPU is possible
Storage	16GB SSD * High-capacity by HDD is possible
Memory	2GB DDR3-1066
I/O Device	Card reader, RFID, 2D barcode reader, fingerprint authentication (option)
Interface	IEEE802.11n/b/g standard wireless LAN, · 2x LAN, Bluetooth, 4x USB2.0 (indicator2 / Main body 2), · 2x SATA2.0, Audio (IN x 1, OUT x 2)
External Dimensions / Weight	Indicator : 458mm(W) x 355mm(H) x 36mm(D), Approx. 4.5kg · Main body : 130mm(W) x 300mm(H) x 60mm(D), Approx. 2.5kg (AC adapter is not included.)
Power Supply	12VDC ± 5% (AC adapter is included.)

BST1850
