INOSP-191 - IP65 19inch Stainless Steel Panel PC Medical and Food industries system with 12v~36volts DC Power input
INOSP-191 - IP65 19inch Stainless Steel Panel PC Medical and Food industries system with 12v~36volts DC Power input. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | IB809 |
|---|---|
| CPU Type | Intel® Atom™ Processor D2550 (1M Cache, 1.86 GHz) |
| Memory | 1033 /1066 DDR3, up to 4GB |
| Construction | 304 stainless steel/ 316 stainless steel for option |
| Chassis | Silver |
| I/O Interface | 2x Gigabit LAN (RJ45) · 2x USB 2.0 (USB Host. A-Type) · 1 x isolated RS-232/422/485, COM1 · 1 x RS-232, COM3 · 2in/2out GPIO · 1x CFast slot · 1x speaker-out microjack · 1x Mic-in microjack · 12~36V DC input |
| Expansion I/O | None |
| Storage | 1x 2.5" HDD drive bay |
| Mounting | VESA mount, 100mmX100mm |
| LCD Size | 19.0" TFT LCD |
| LCD Color | 16.7M colors |
| Touch Screen | Resistive Touch Panel |
| Display Resolution | 1280 x 1024 |
| LCD Brightness | 350 cd/cm2 |
| Dot Pitch | 294um x 294um |
| Viewing Angle | 170/160 |
| Backlight MTBF | 50,000 Hrs |
| Dimensions | 470mm(W) x 388mm(H) x 60mm(D) |
| Storage Temperature | -10°C~60°C |
| Relative Humidity | 90% |
| Protection Class | IP65 expect I/O side, Waterproof I/O cover with M12 connector for option |

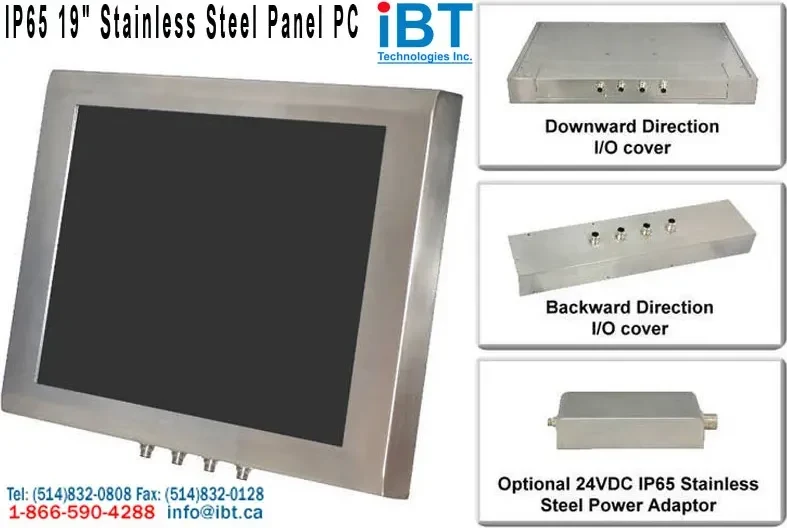

I/O — Rear panel
Front access
Where the INOSP191RE is deployed
Plant-floor human-machine interfaces for SCADA and process visualization.
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
Public-facing terminals for wayfinding, ticketing, and interactive displays.
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
