IPPC-W07
PANEL PCS / IN STOCK

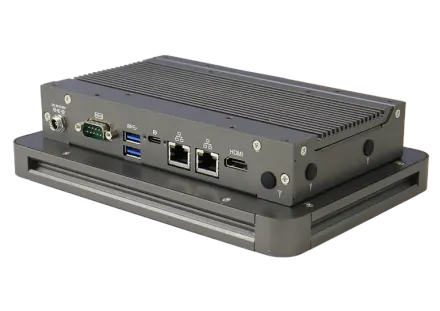

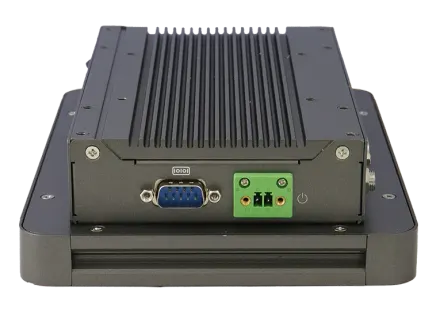

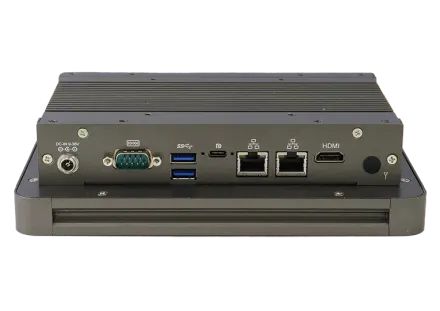

IPPC-W07

Intel® Atom® N150 / N97 / Core™ 3 N355 Processors (formerly Twin Lake) Fanless Panel PC with USB Type-C

Intel® Atom® N150 / N97 / Core™ 3 N355 Processors (formerly Twin Lake) Fanless Panel PC with USB Type-C. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU
Intel® Atom® N150 Processor(Quad-Core)Intel® Atom® N97 Processor(Quad-Core)Intel® Core™ N355 Processor(Quad-Core)
MEMORY
1x DDR5 SO-DIMM, up to 16GB
STORAGE
SDD:1x M.2 2280 (M-Key)
DISPLAY
7 (15:9)
IPPC Series Compact Panel PCIndustrial Panel PC
REQUEST QUOTE DATASHEET (PDF)
MFR. PART # IPPC-W07 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

42 ROWS
Display Size7 (15:9)
Max. Resolution800 x480 (15:9)
Luminance (cd/m2)500
Contrast800 : 1
Max. Color16.7M
View Angle (H/V)178° / 178°
Backlight Lifetime(hrs)50,000
Touch TypeProjected Capacitive touch
Touch InterfaceUSB
Light Transmission (%)85±2.5%
Point of touchUp to 10
USB 3.0/ 3.12x USB 3.2, 1x USB Type-C
USB 2.0N/A
RS-232/422/485 Selectable in BIOSCOM 1 Selectable in BIOS
RS-232COM 2
LAN2x 2.5GbE
Additional GraphicsHDMI1x USB-C (DP Alternate mode)
AudioNone
Digital I/ONone
Power ConnectorDC Jack with screw lock
Power ButtonRocker Switch
Dimensions (mm)210 x 149 x 53
Net Weight (kgs)3.0 kgs
ProcessorIntel® Atom® N150 Processor(Quad-Core)Intel® Atom® N97 Processor(Quad-Core)Intel® Core™ N355 Processor(Quad-Core)
Memory1x DDR5 SO-DIMM, up to 16GB
Thermal DesignFanless
Membrane ControlNone
Built-in Speaker/MICNone
Internal Expansion Bus1x M.2 2280 (M Key)1x M.2 2230 (E-Key)1x M.2 3052 (B-Key)
Expansion SlotN/A
WirelessOptional Wi-Fi/BT/4G/5G/LTE
StorageSDD:1x M.2 2280 (M-Key)
Power Input RangeDC +9V~36V
Chassis MaterialAluminum and SGCC
Color (Front/Back)Gray / Gray
IP RatingIP66 front-panel waterproof
MountingVESA 75x75 and 100x100 mm, side mount and optional Panel Mount
Operating Temperature-20°C~70°C for N150 with air flow-20°C~50°C for N97-20°C~40°C for N355
Storage Temperature-30~80°C
Storage Humidity5%~90% @ 50°C (non-condensing)
CertificationCE/FCC Class-B
Supported Operating SystemsMicrosoft Windows 10,11, Linux Kernel 4+
