IPPC08A7RE
8.4inch PanelPC Intel® Atom™ N2600 processor
8.4inch PanelPC Intel® Atom™ N2600 processor. Local warranty support and engineering customization available on request.
CPU
Intel® Atom™ Processor N2600
MEMORY
1x DDR3 SO-DIMM, Max. 2GB
STORAGE
1x CFAST or 1x 2.5” HDD / SSD
DISPLAY
8.4” TFT LCD
P/N # IPPC08A7RE
Diagram Specifications
19 ROWS
| CPU Type | Intel® Atom™ Processor N2600 |
|---|---|
| System Speed | 1.6 GHz |
| Memory | 1x DDR3 SO-DIMM, Max. 2GB |
| Construction | Aluminum Front Bezel and SGCC |
| Chassis | Silver front bezel and back cover |
| Front Panel External I/O | 1x Power LED indicator |

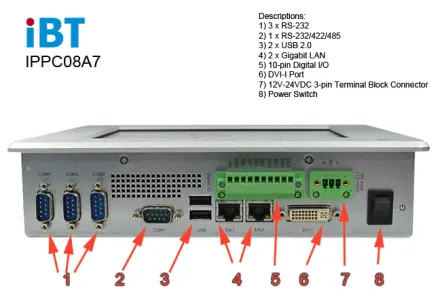

| Rear Panel External I/O | 1x DVI-I · 2x GbE LAN · 4x USB2.0 (2x USB2.0 on side panel) · 4x Digital Input · 4x Digital Output · 4x COM ports (COM1:RS-232/422/485) · 1x CFAST slot on side · 1x Power On/Off Switch |
| Storage | 1x CFAST or 1x 2.5” HDD / SSD |
| Power Supply | 12VDC ~ 24VDC with 3-pin · terminal block |
| Mounting | VESA mount, 75mm x 75mm |
| Dimensions | 250mm(W) x 193mm(H) x 58.5mm(D) |
| LCD Size | 8.4” TFT LCD |
| LCD Color | 16.2M colors |
| Backlight | LED |
| Display Resolution | 800 x 600 |
| LCD Brightness | 350 cd/m2 |
| Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| Storage Temperature | -20° ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |

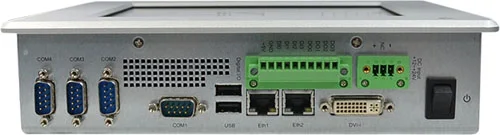

I/O — Rear panel
Front access
Where the IPPC08A7RE is deployed
USE CASE
HMI / operator terminals
Plant-floor human-machine interfaces for SCADA and process visualization.
USE CASE
Medical & lab instruments
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
USE CASE
Self-service kiosks
Public-facing terminals for wayfinding, ticketing, and interactive displays.
USE CASE
Outdoor / transportation HMI
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓IPPC08A7RE datasheetPDF document
- DOWNLOAD ↓IPPC08A7RE diagramPDF document
