IPPL-W156
USB Type-C Single Cable Connection Fully Waterproof Industrial Touch Monitor
USB Type-C Single Cable Connection Fully Waterproof Industrial Touch Monitor. Local warranty support and engineering customization available on request.
Specifications
| Display Size | 15.6 (16:9) |
|---|---|
| Max. Resolution | 1920 x 1080 |
| Contrast | 800 : 1 |
| Panel Interface | LVDS |
| View Angle (H/V) | 178° / 178° |
| Brightness (cd/m2) | 350, 500 nits |
| Touch Type | Projected Capacitive touch |
| Touch Interface | USB |
| Light Transmission (%) | 85±2.5% |
| Glass Thickness | 3mm |
| Surface Hardness | 7H |
| Point of touch | 10-point multi-touch |
| USB 3.0/ 3.1 | 1x USB Type-C (Alternate mode) |
| USB 2.0 | 2 |
| LAN | N/A |
| HDMI-IN | 1 |
| Audio | 3.5mm jack |
| DC-in | DC Jack 5.5mm/2.5mm |
| OSD Button | 1 |
| Dimensions (mm) | 401.76 x 251.19 x 40 mm |
| Net Weight (kgs) | 3.5 kg |
| Power Input Range | DC 12V ±5% |
| Chassis Material | Aluminum and SGCC |
| Color (Front/Back) | Gray / Black |
| IP Rating | IP66 front-panel waterproof and body IP54 |
| Mounting | VESA 100x100 mm |
| Operating Temperature | 0°C~45°C |
| Storage Temperature | -20~60°C |
| Storage Humidity | 5%~90% @ 50°C, (non-condensing) |
| Certification | CE/FCC Class-B |

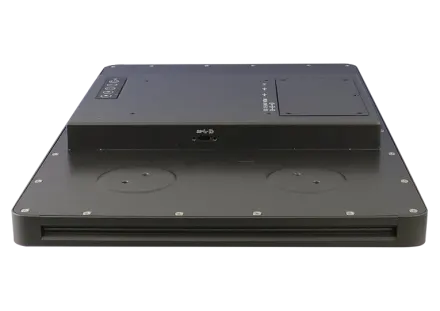

I/O — Rear panel
Front access
Where the IPPL-W156 is deployed
Plant-floor human-machine interfaces for SCADA and process visualization.
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
Public-facing terminals for wayfinding, ticketing, and interactive displays.
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
