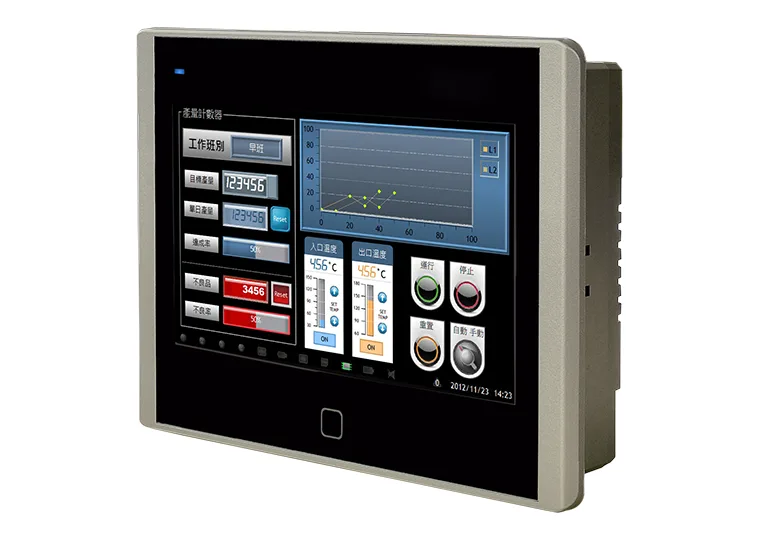

IPR-P07F-N

Industrial HMI with TI ARM® Cortex™ A8, Sitara™ AM3352 (1GHz) Processor

Industrial HMI with TI ARM® Cortex™ A8, Sitara™ AM3352 (1GHz) Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

ARM Cortex-A8 (1GHz)

MEMORY

4G Bytes eMMC

STORAGE

-20 ~ 60°C

DISPLAY

7" TFT

IPR Series Industrial HMIARM based HMI

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # IPR-P07F-N — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

31 ROWS

Display type	7" TFT
Resolution	800 x 480
Display area	154.08mm x 85.92mm
Color depth	64K
Backlight type	LED
Brightness	300 cd/m²
Backlight lifetime	20,000 hours
Viewing angle (H°/V°)	140/120
Contrast	500:1
Touch panel	4-wire resistive type
CPU	ARM Cortex-A8 (1GHz)
Flash memory	4G Bytes eMMC
DRAM	512M Bytes
FRAM (non-volatile)	32K Bytes
RTC	Yes
COM1	RS232/422/485
COM2	RS232/422/485
COM3	RS232/485 or CAN bus (option)
Ethernet	1x 10/100 Mbit or 2x 10/100 Mbit (option)
USB	1x Host, 1x Device
Memory card	SD Card
Power supply voltag	DC 24V ±20%, isolated power
Power consumption	8W
Operation temperature	0 ~ 50°C
Storage temperature	-20 ~ 60°C
Humidity	10% ~ 90% (non-condensing) @40°C
Waterproof (front)	IP65
ESD Protection	Level 4 (Contact Discharge 8KV, Air-Gap Discharge 15KV), Class A
Dimension	199.8mm(W) x 147.8mm(H) x 39.8mm(D)
Cut-out	185.2mm(W) x 133.2mm(H)
Weight(Net)	0.68Kg
