JTMU10
MU10 - Intel 11th GEN solutions with 4 independent display output with Intel® Tiger Lake-UP3 SoC Processors, Dual Lan, PCIe x4 NVME, USB 3.2
MU10 - Intel 11th GEN solutions with 4 independent display output with Intel® Tiger Lake-UP3 SoC Processors, Dual Lan, PCIe x4 NVME, USB 3.2. Local warranty support and engineering customization available on request.
Features
| Feature 1 | - Intel® Tiger Lake-UP3 SoC Processor (TDP 15W) |
|---|---|
| Feature 2 | - 2x DDR4 3200MHz SO-DIMM up to 64GB |
| Feature 3 | - 2x Intel 2.5GbE Ethernet (i219-LM/i225-V) |
| Feature 4 | - 2x HDMI (DP1.4 type-C) |
| Feature 5 | - 5x USB (2x 3.2G2) and Serial |
| Feature 6 | - 3x M.2 (M-key 2242/2280, E-key 2230 and B-key 3042/3052) |
Ordering Information
| MU10-20 | Tiger Lake-UP3 i5-1145G7E 2.1~4.2G / 3.8G 3200 NVMe D4_16G |
|---|

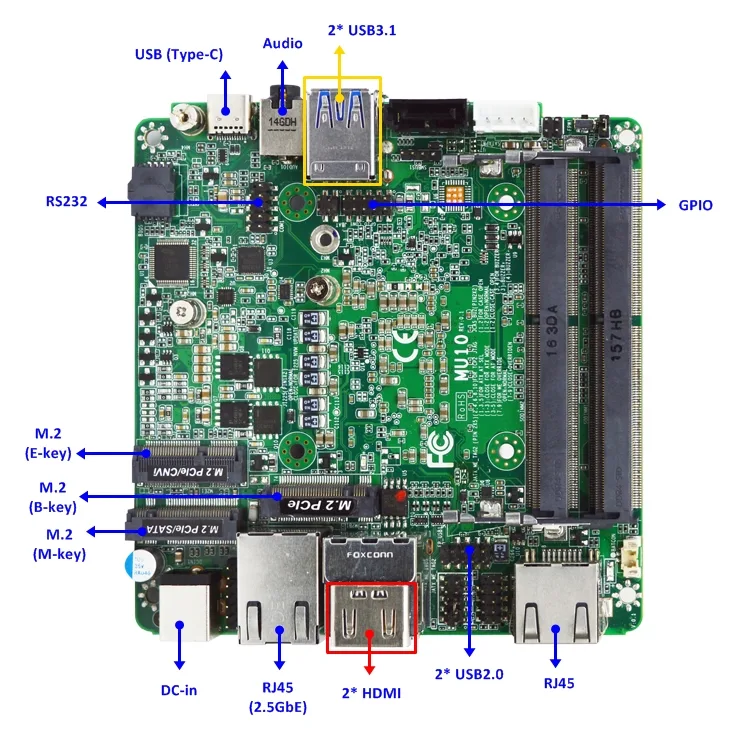

I/O — Rear panel
Front access
Where the JTMU10 is deployed
Plant-floor human-machine interfaces for SCADA and process visualization.
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
Public-facing terminals for wayfinding, ticketing, and interactive displays.
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
