MRS800

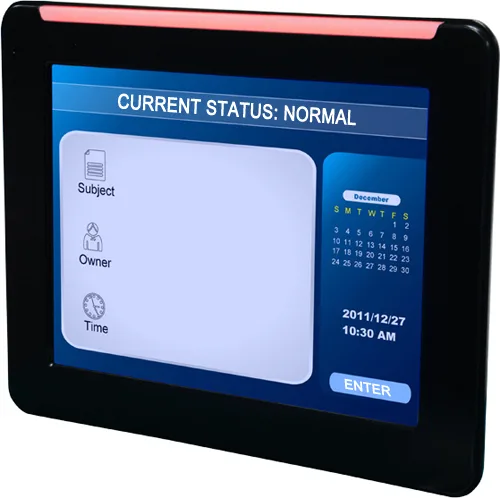

MRS-800 RISC-Based 8 inch Panel
MRS-800 RISC-Based 8 inch Panel. Local warranty support and engineering customization available on request.
CPU
TI AM3517
MEMORY
256MB DDR2 on board
STORAGE
512MB NAND SD card / flash
DISPLAY
8" TFT LCD
P/N # MRS800
Specifications
22 ROWS
| System Mainboard | IB100MRS |
|---|---|
| CPU Type | TI AM3517 |
| System Speed | 600MHz |
| Memory | 256MB DDR2 on board |
| Construction | Plastic · Chassis · Black |
| Front Panel External I/O | 1x LED light bar · 1x SD card slot (right-side) |
| Rear Panel External I/O | 1x 10/100 LAN (RJ45) with PoE support · 1x USB (USB Host. A-Type) · 1x USB OTG (mini USB B type) · 1x COM1 RS-232 for (RJ45 connector) · 1x 12V DC-IN jack with lock |
| Storage | 512MB NAND SD card / flash |
| Power Supply | +12V DC-in, 40W power adaptor, PoE |
| Mounting | VESA mount, 75mm x 75mm |

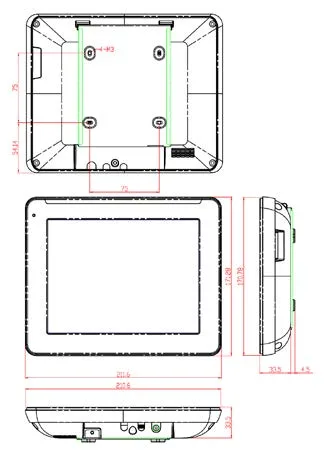

| Dimensions | 211.6mm(W) x 171.28mm(H) x 33.5mm(D) |
| LCD Size | 8" TFT LCD |
| LCD Color | 262k colors |
| Touch | Resistive touch |
| Backlight | LED · 800 x 600 |
| LCD Brightness | 200 cd/cm2 |
| Dot Pitch | 0.675 um x 0.675 um |
| Viewing Angle | 140°/120° |
| Backlight MTBF | 20,000 hrs |
| Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| Storage Temperature | -20° ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
I/O — Rear panel
Front access
Where the MRS800 is deployed
USE CASE
HMI / operator terminals
Plant-floor human-machine interfaces for SCADA and process visualization.
USE CASE
Medical & lab instruments
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
USE CASE
Self-service kiosks
Public-facing terminals for wayfinding, ticketing, and interactive displays.
USE CASE
Outdoor / transportation HMI
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
