North AmericaISO 9001 CERTIFIED
PANEL PCS / IN STOCK

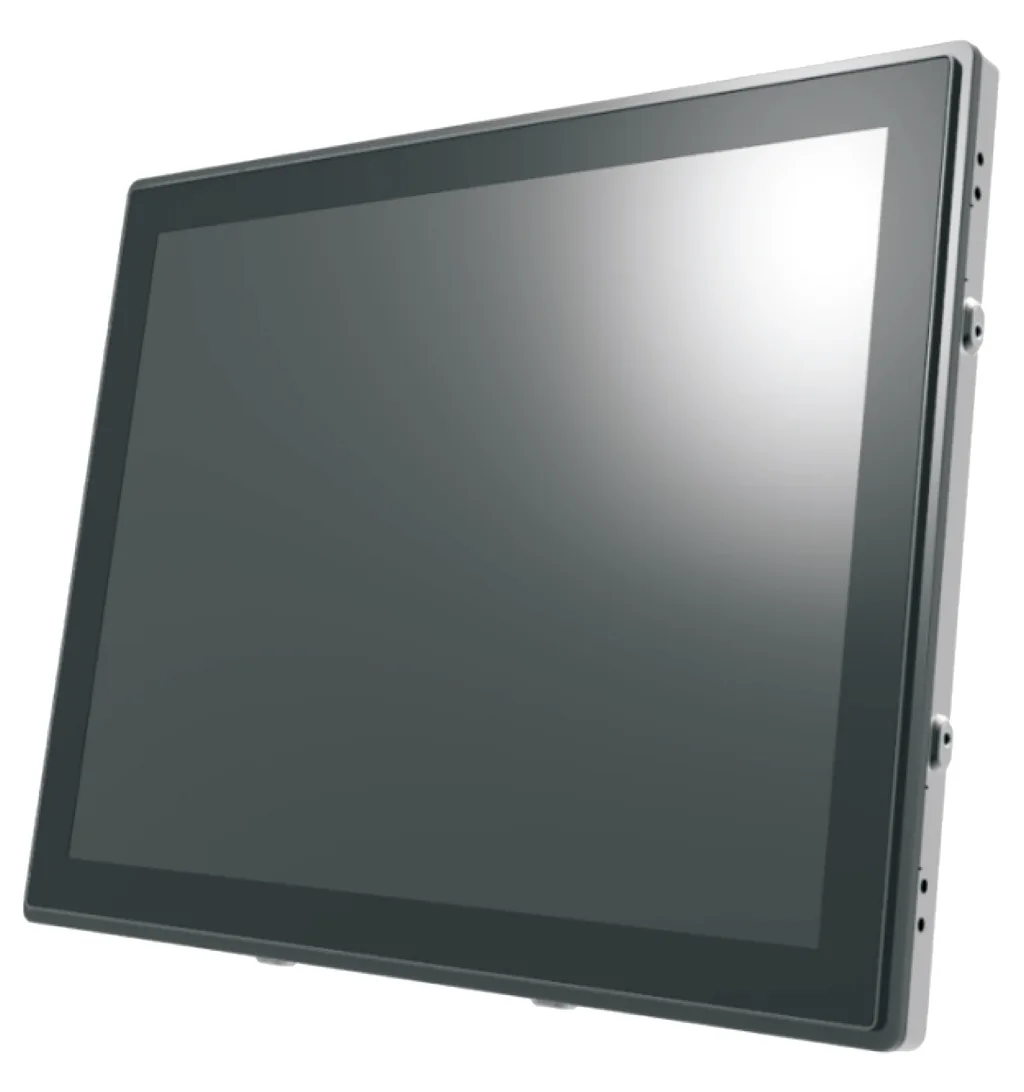

TPM173P
17in Bezel Free Touch Monitor
17in Bezel Free Touch Monitor. Local warranty support and engineering customization available on request.
DISPLAY
0.7V peak to peak · Separated HV Sync. / Composite Sync. / Sync-on Green · 31.47kHz ~ 60.02kHz / 56Hz ~ 75Hz (Horizontal / Vertical) · D-sub 15 pin Female (Analog) · Plug n Play DDC 2B Compatible
POWER
25W (typ.) / Sleep: 3W / Off: 1W · Stand / 100 X 100 mm VESA Mount · 17" diagonal TFT Active Matrix Panel · 338 (H) X 270 (V) mm · 0.264 (H) X 0.264 (V) mm · 1280 X 1024 (Max.) · VGA 720 X 400 (70 Hz) · VGA 640 X 480 (60/66/70/72/75 Hz) · SVGA 800 X 600 (56/60/72/75 Hz) · XGA 1024 X 768 (60/70/75 Hz) · SXGA 1280 X 1024 (60/70/75 Hz) · 16.7M (6 bits + FRC)
DIMENSIONS
394.0 (W) X 330.0 (H) X 57.1 (D) mm · 4.8 kg · 7 kg
CONTRAST RATIO
250 nits (typical) · 225 nits (typical) · 5ms (typical) · 160° (typical) · 160° (typical)
P/N # TPM173P
Specifications
6 ROWS
| Dimensions | 394.0 (W) X 330.0 (H) X 57.1 (D) mm · 4.8 kg · 7 kg |
|---|---|
| Power Consumption Operating | 25W (typ.) / Sleep: 3W / Off: 1W · Stand / 100 X 100 mm VESA Mount · 17" diagonal TFT Active Matrix Panel · 338 (H) X 270 (V) mm · 0.264 (H) X 0.264 (V) mm · 1280 X 1024 (Max.) · VGA 720 X 400 (70 Hz) · VGA 640 X 480 (60/66/70/72/75 Hz) · SVGA 800 X 600 (56/60/72/75 Hz) · XGA 1024 X 768 (60/70/75 Hz) · SXGA 1280 X 1024 (60/70/75 Hz) · 16.7M (6 bits + FRC) |
| Contrast Ratio | 250 nits (typical) · 225 nits (typical) · 5ms (typical) · 160° (typical) · 160° (typical) |
| Video Input Format Video | 0.7V peak to peak · Separated HV Sync. / Composite Sync. / Sync-on Green · 31.47kHz ~ 60.02kHz / 56Hz ~ 75Hz (Horizontal / Vertical) · D-sub 15 pin Female (Analog) · Plug n Play DDC 2B Compatible |
| OSD Keys | Control Key Power On/Off, Select, Down, Up, Menu · OSD Option Contrast, Brightness, Auto Adjust, Left / Right, Down / Up · Horizontal Size, Fine, OSD Left / Right, OSD Down / Up · OSD Timeout, Factory Reset, Language, RGB, Audio |
| Audio | 1W Speaker / 2 Channels · TUV, CE, UL, CUL, FCC-B, RoHS, IPX1 · Projected Capacitive – USB · 0°C ~ +40°C · -20°C ~ +60°C · 20% ~ 80% (Noncondensing) · 10% ~ 90% (Noncondensing) |
I/O — Rear panel
Front access
Where the TPM173P is deployed
USE CASE
HMI / operator terminals
Plant-floor human-machine interfaces for SCADA and process visualization.
USE CASE
Medical & lab instruments
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
USE CASE
Self-service kiosks
Public-facing terminals for wayfinding, ticketing, and interactive displays.
USE CASE
Outdoor / transportation HMI
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓TPM173P datasheetPDF document
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
