PC À ÉCRAN TACTILE / EN STOCK

UMT-7212

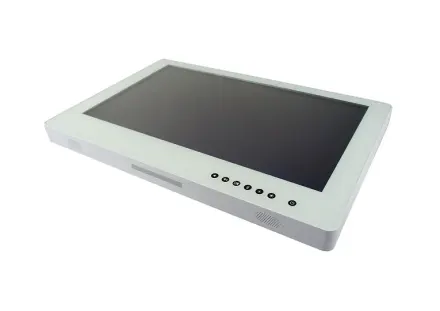

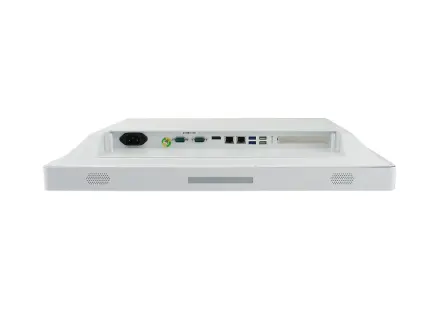

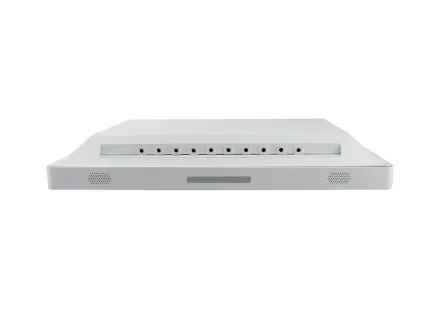

PC à écran tactile 21,5 po Medical — 6th Gen Intel® Core™ i5-6300U Processor

PC à écran tactile 21,5 po Medical — 6th Gen Intel® Core™ i5-6300U Processor. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel® Core™ i5-6300U 2.4GHz

MEMORY

2x DDR4-2133 SO-DIMM, default 4GB (1x 4GB )

STORAGE

1x 2.5” SATA, default 64G SSD1x M.2 SSD

DISPLAY

21.5” TFT LCD

Medical Panel PCODM Panel PC

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT UMT-7212 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

42 LIGNES

Display Size	21.5” TFT LCD
Max. Resolution	1920 x 1080
Luminance (cd/m2)	300
Contrast	1000:1
Max. Color	16.7M
View Angle (H/V)	178° /178°
Backlight Lifetime(hrs)	30000
Touch Type	Projected capacitive
Touch Interface	USB
Light Transmission (%)	87
Point of touch	Up to 10
USB 3.0/ 3.1	2
USB 2.0	2
RS-232/422/485 Selectable in BIOS	1 (4KV isolated)
RS-232	1 (4KV isolated)
LAN	2x GbE (4KV isolated)
Additional Graphics	DP
Audio	None
Digital I/O	None
Power Connector	IEC60320 C14
Power Button	Capacitive-type power button with LED indicator in front bezel
Dimensions (mm)	557 x 360 x 80
Net Weight (kgs)	6.7
Processor	Intel® Core™ i5-6300U 2.4GHz
Memory	2x DDR4-2133 SO-DIMM, default 4GB (1x 4GB )
Thermal Design	Fanless
Membrane Control	Capacitive keys for Power on-off/Brightness up/down/Volume up/down/Touch on-off/Reading light on-off
Built-in Speaker/MIC	IP54 speaker
Internal Expansion Bus	1x M.2 Type 2230 socket1x Mini PCI-E full-size socket
Expansion Slot	1x PCI-E (x4)
Wireless	Optional
Storage	1x 2.5” SATA, default 64G SSD1x M.2 SSD
Power Input Range	90V AC-240V ACOptional internal backup battery for 15-min operation
Chassis Material	Aluminum + Sheet metal with white powder coating
Color (Front/Back)	Medical White
IP Rating	IP65 rated front bezel / IP54 (except I/O side)
Mounting	VESA 100mm x 100mm
Operating Temperature	0°C ~40°C
Storage Temperature	-20°C ~ 60°C
Storage Humidity	10%~ 95% (non-condensing)
Certification	CE/FCC Class-B and LVDEN 60601-1: 2006 + A1: 2013(IEC 60601-1: 2012 reprint)EN 60601-1-2:2015 (IEC 60601-1-2:2014)
Supported Operating Systems	Windows 10 64-bit
