IB965

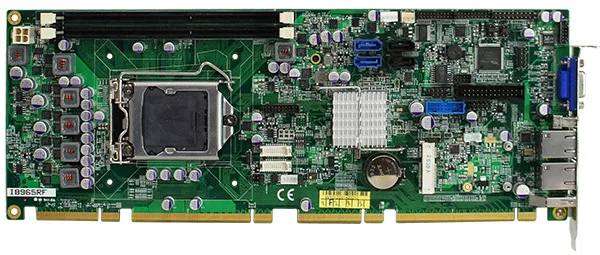

IB965 - 3rd Generation Intel® Core™ i7/i5/i3/Pentium® processor PICMG 1.3 Full-Size CPU Card w/ Intel® Q77 PCH

IB965 - 3rd Generation Intel® Core™ i7/i5/i3/Pentium® processor PICMG 1.3 Full-Size CPU Card w/ Intel® Q77 PCH. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

LGA1155

MEMORY

Two DDR3 sockets · Max. 16GB (Non-ECC)

STORAGE

-20°C~80°C (-4°F~176°F)

ETHERNET

Intel® 82579V Gigabit LAN PHY · Intel® 82583V PCI-E Gigabit LAN · RJ-45 on board

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # IB965 — IBASE Technology

Specifications

20 ROWS

CPU Socket	LGA1155
CPU	3rd Generation Core™ i7/i5/i3 / Pentium® / QC/ DC processors, up to 3.4GHz
CPU Front Side Bus ( FSB )	N/A
Chipset	IB965RF: Intel® Q77 PCH · IB965F: Intel® B75 PCH
BIOS	AMI
System Memory	Two DDR3 sockets · Max. 16GB (Non-ECC)
Integrated VGA	3rd Generation Intel® Core™ i7/i5/i3 / Pentium® · Processor Integrated HD 4000 Graphics
LAN	Intel® 82579V Gigabit LAN PHY · Intel® 82583V PCI-E Gigabit LAN · RJ-45 on board
Audio	Intel® Q77/B75PCH built-in HD audio controller+ Realtek ALC662 codec
Multi I/O	Fintek F81866AD-I · 3xRS232,1xRS232/422/485(Jumper-less selecting), · 1 x KB/ MS · IB965RF : 2x SATA II, 2x SATAIII , 1x LPT · IB965F : 1x SATA II, 3x SATAIII, 1x LPT
USB	1x USB2.0 and 1x USB 3.0 port onboard Pin headers for 2ports (USB 2.0) + 2 ports (USB 3.0)
Watchdog Timer	Generates system reset; 256 levels
Digital I/O	Digital I/O(4-in/4-out), iSMART, TPM 1.2 , RAID (IB965RF only)
Expansion Slots	1x Mini PCI-E, supports mSATA
Edge Connectors	CRT VGA, USB, RJ-45, KB/MS
Form Factor	Full Size CPU Card
Dimensions	338mm x 126mm (13.31" x 4.96") · Power Consumption · TBC
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)

Features

10 ROWS

Feature 1	3rd Generation Intel® Core™ i7/i5/i3/
Feature 2	Pentium® QC/DC processors, up to 3.4GHz
Feature 3	2x DDR3 DIMM, Max. 16GB
Feature 4	Intel® Processor integrated graphics device, Gfx Gen. 5.7, supports CRT,DVI-D
Feature 5	24-bit dual channel LVDS
Feature 6	Dual Intel® Gigabit LAN
Feature 7	2x USB2.0, 3x USB3.0, 4x COM, 2x SATA II,
Feature 8	2x SATAIII
Feature 9	Watchdog timer , Digital I/O, LPT
Feature 10	1x Mini PCI-E, supports mSATA

Ordering Information

2 ROWS

IB965RF	- LGA1155 Q77 Full-Size CPU Card w/ VGA, DVI-D, 24-bit LVDS, dual Gigabit LAN, iSMART, TPM 1.2, RAID
IB965F	- LGA1155 B75 Full-Size CPU Card w/ VGA, DVI-D, 24-bit LVDS, dual Gigabit LAN, iSMART, TPM 1.2
