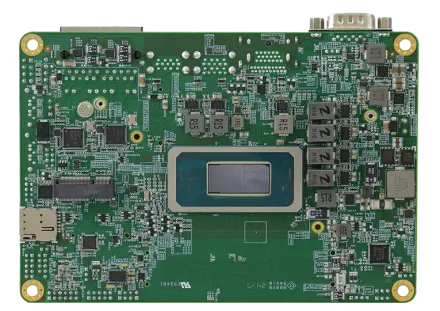

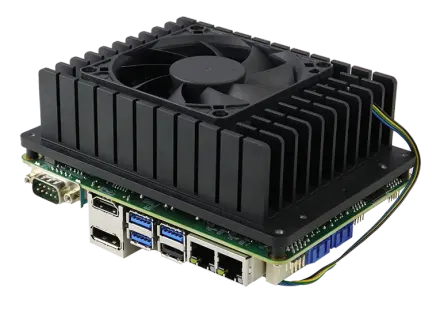

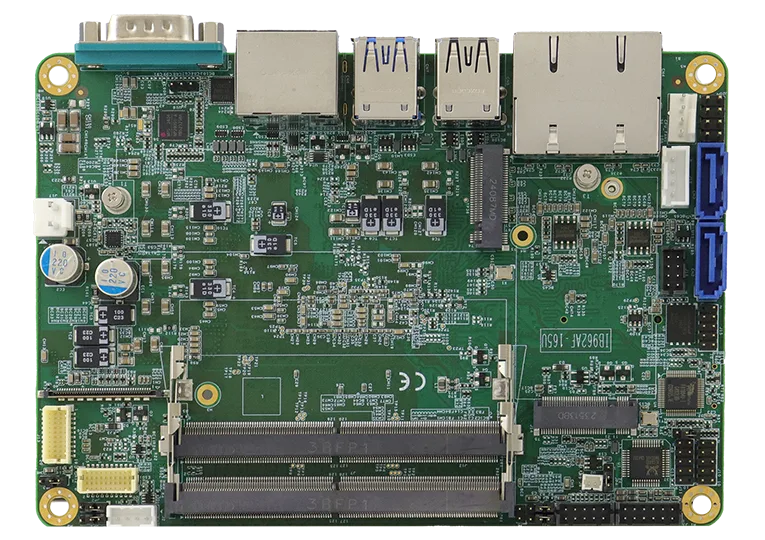

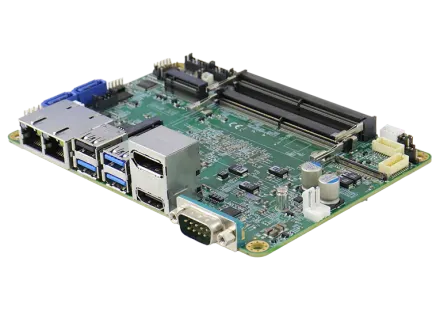

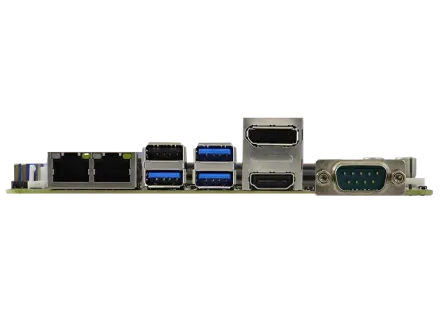

IB962

3.5" Single Board Computer with Intel® Core™ Ultra 7/5 100 Series Mobile Processor

3.5" Single Board Computer with Intel® Core™ Ultra 7/5 100 Series Mobile Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Core™ Ultra 7/5 100 Series processors

MEMORY

2x DDR5 SO-DIMM, 5600MT/s, Non-ECC, Max.96GB

STORAGE

M.2 (M2280 for NVMe)

DISPLAY

HDMI, DisplayPort, eDP & LVDS

x86 based 3.5 Single Board…Single Board Computer

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # IB962 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	Intel® Core™ Ultra 7/5 100 Series processors
PCH	N/A
Memory	2x DDR5 SO-DIMM, 5600MT/s, Non-ECC, Max.96GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	M.2 (M2280 for NVMe)
Mini Type Slots	1x M.2 (M-Key, Type:2280, supports NVMe with PCle(4x) signal only)1x M.2 (E-Key, Type:2230, supports CNVi)1x M.2 (B-Key, Type:3052, supports 5G/LTE)
Graphics Controller	Intel® Core™ series built-in Iris Xe Graphics
Video Output	HDMI, DisplayPort, eDP & LVDS
Ethernet	Intel® I226LM as 1st LAN, I226V as 2nd LAN
I/O Chipset	Fintek F81804U-I on board
Serial Port	2x RS232/422/485
USB 2.0	3x USB 2.0 (1x Type-A ; 2x via pin headers)
USB 3.X	3x USB 3.2 (Type-A)
Serial ATA	2x SATA III
Audio	Intel® Core™ Ultra processor built-in HD audio + ALC888S codec
TPM	dTPM
Others	Digital I/O (4-in/4-out); +12V~+24V DC-in
Dimensions (L x W)	102mm x 147mm (4“ x 5.8“)
Power Consumption	Intel® Core™ Ultra 7 165H, Up to 5.0GHz w/ 2x 32GB DDR5-5600 memory module+12V: 6.83A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10% ~ 90% (non-condensing)
