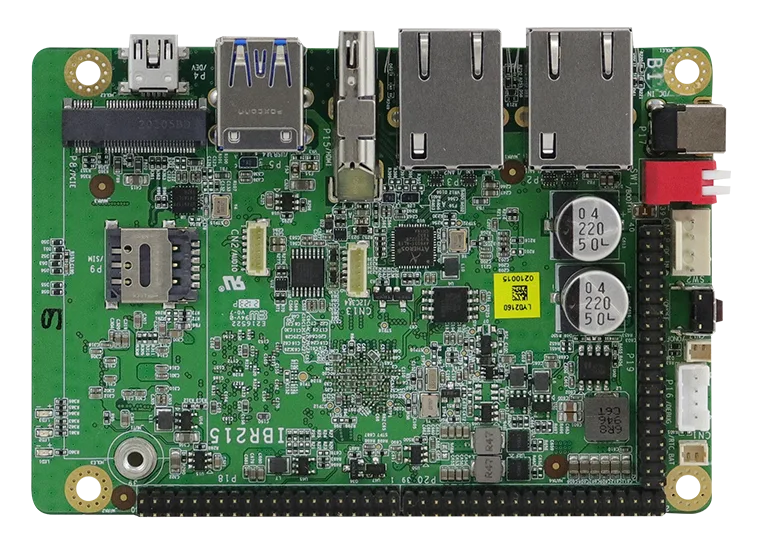

IBR215

2.5" Single Board Computer with NXP ARM® Cortex-A53 i.MX 8M Plus Quad 1.6GHz Processor

2.5" Single Board Computer with NXP ARM® Cortex-A53 i.MX 8M Plus Quad 1.6GHz Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

NXP Cortex®-A53 i.MX8M Plus processor

MEMORY

3GB DDR4 on board (option: 1/2/4GB)

STORAGE

16GB eMMC on board (up to 128GB)

DISPLAY

1x HDMI 1.4a1x Dual channel LVDS

ARM based 2.5 Single Board…Single Board Computer

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # IBR215 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	NXP Cortex®-A53 i.MX8M Plus processor
PCH	SoC
Memory	3GB DDR4 on board (option: 1/2/4GB)
BIOS	N/A
Watchdog Timer	256 levels, 0~128 seconds
H/W Monitor	Yes
Storage Device Interface	16GB eMMC on board (up to 128GB)
Mini Type Slots	1x M.2 E-Key(2230)w/ SDIO, UART for wireless1x Mini PCI-E w/ USB 2.0, SIM, PCM for 4G/LTE
Graphics Controller	GC7000UL OpenGL ES 3.1, VulkanOpen CL™ 1.2 FPVivante GC520L (2D)
Video Output	1x HDMI 1.4a1x Dual channel LVDS

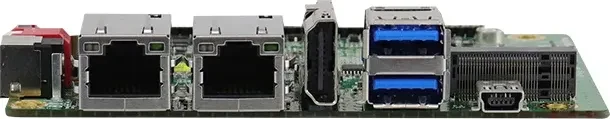

Ethernet	2x RJ45 GbE LAN
I/O Chipset	N/A
Serial Port	1x DB-9 RS232/422/485 port
USB 2.0	1x USB2.0
USB 3.X	2x USB 3.0 Type-A2x USB 3.0 in 2x10 headers2x USB 3.0
Serial ATA	N/A
Audio	internal header (1x line-in, 1x line-out)
TPM	N/A
Others	OS Support: Yocto v3.0 / Android 11/Other OS (by request)CE/ FCC Class-B12V~24V DC-in jack

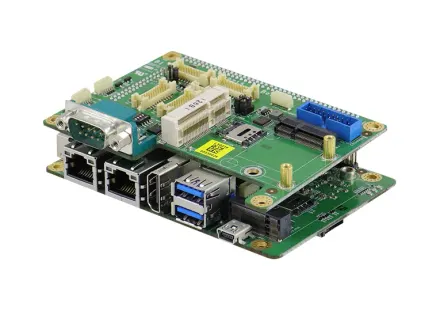

Dimensions (L x W)	IBR215: 105mm x 72mm (4.13” x 2.83”)IBR215-IO: 100mm x 72mm (3.94” x 2.83”)
Power Consumption	NXP i.MX8M Plus Quad,1.6 GHz w/ 3GB DDR4,+12V: 1.79A
Operating Temperature	-40°C~ 85°C (with heat sink or through housing design)-40°C~ 65°C (without heatsink)
Storage Temperature	TBD
Relative Humidity	10%~90% (non-condensing)

IBR215
