ES1001PRELIMINARY

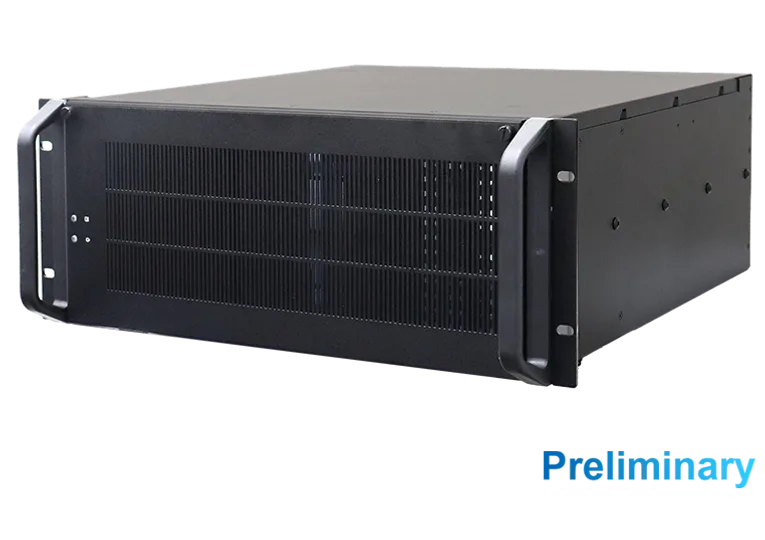

Edge AI Server with AMD Ryzen™ Embedded 7000 Series Processors
Edge AI Server with AMD Ryzen™ Embedded 7000 Series Processors. Local warranty support and engineering customization available on request.
CPU
AMD Ryzen™ Embedded 7000 Processors
MEMORY
Dual Channel DDR5 5200, UDIMM 4 slots, Max. 128GB, ECC support
STORAGE
4x SATA 6Gb/s2x M.2 2280 M-key (PCI-E x2 Gen4, supports NVMe)
OPERATING TEMP.
0°C~60°C ( 32°F~140°F)
Edge AI ServerAI Computing Platform
P/N # ES1001
Manual Specifications
23 ROWS
| System Mainboard | AMD Ryzen™ Embedded 7000 series ATX Motherboard |
|---|---|
| CPU Type | AMD Ryzen™ Embedded 7000 Processors |
| System Speed | Max. 4.7GHz |
| Memory | Dual Channel DDR5 5200, UDIMM 4 slots, Max. 128GB, ECC support |
| AI Inference Computing Power | Integrated AMD Ryzen™ 7000 Series APU with Zen 4 CPU and RDNA™ 3 GPU architecture / 12 RDNA3 compute units / up to 8.6 TFLOPS FP32 peak performance / support 1x Gen5 PCI-E (x16) |
| Front Panel External I/O | 2x USB 2.0 via pin header2x USB 2.0 Type-A vertical connector 4x USB 3.2 Gen 22x USB 3.2 Gen 1 with PDPC support |
| Rear Panel External I/O | 1x Dual DB9 stack connector forCOM 1 (RS-232/422/485) (jumperless selection)COM 2 (RS-232)4x COM via pin header (RS-232) |
| Expansion Slot | 1x PCI-E x16 (Gen5) / 1x PCI-E x4 (Gen5)1x PCI-E x4 (Gen4) / 1x PCI-E x1 (Gen3)1x PCI |
| Storage | 4x SATA 6Gb/s2x M.2 2280 M-key (PCI-E x2 Gen4, supports NVMe) |
| Power Requirement | 1x ATX standard 24-pins type & 8-pin type (+12V only) |
| Power Supply | 1x ATX standard 850W PSU |
| Construction | Aluminum & steel |
| Chassis Color | Black |
| Mounting | NA |
| Weight | TBD |
| Dimensions | 427mm(W) x 407.6mm(D) x 177mm(H)16.8”(W) x 16”(D) x 6.96”(H) |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | 20°C~80°C (-4°F~176°F) |
| Relative Humidity | 95% (non-condensing @60°C) |
| Vibration | Non-operating: 1.0 grms / 5~500Hz / random operationOperatiing:0.25 grms / 5~500Hz / random operation |
| Shock | Operating: 20 g / 11 msNon-operating: 40 g / 11 ms |
| Certification | CE / LVD / FCC Class B |
| Operating System | Windows 11Windows Server 2022Ubuntu 22.04 |
I/O — Rear panel
Front access
Where the ES1001 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
