ET860

Module CPU COM Express Type-6 — Intel® Atom® E3845/E3827 Processor

Module CPU COM Express Type-6 — Intel® Atom® E3845/E3827 Processor. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel® Atom® Processor E3845/E3827

MEMORY

2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC)

STORAGE

N/A

DISPLAY

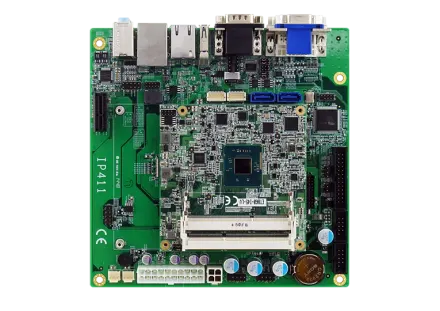

24-bit single-channel LVDS on carrier board (IP411)

COM ExpressCPU Module

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT ET860 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

24 LIGNES

CPU	Intel® Atom® Processor E3845/E3827
PCH	Integrated in Intel® Atom® SoC
Memory	2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC)
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	N/A
Expansion Slots	1x PCI-E(x1)
Graphics Controller	Intel® Atom® E3845/E3827 SoC integrated graphicsSupports CRT, DisplayPort & LVDS
Video Output	24-bit single-channel LVDS on carrier board (IP411)
Ethernet	1x Intel® I210IT Gigabit LAN
I/O Chipset	Nuvoton NCT5523D
Serial Port	2x COM ports (Tx/Rx only))
USB 2.0	8x USB 2.0 via carrier board (Supports 6x USB 2.0 only on IP411)
USB 3.X	1x USB 3.0 via carrier board (IP411)
Serial ATA	2x SATA III ports via carrier board (IP411)
Audio	Intel® Atom® E3845/E3827 SoC built-in audio with Realtek ALC662 or ALC888S codec on carrier board (IP411)
TPM	N/A
Others	MicroSD slot on board @ rear sideDigital I/O (4-in / 4-out) on carrier board (IP411)
Dimensions (L x W)	95mm x 95mm (3.74" x 3.74")
Power Consumption	Intel® Atom® E3845 1.91GHzw/ 2x 2GB DDR3L-1600+12V: 0.91A; +5V: 0.13A;+5VSB: 0.05A; +3.3V: 0.24A
Operating Temperature	-40°C~85°C (-40°F~185°F)
Storage Temperature	-40°C~90°C (-40°F~194°F)
Relative Humidity	90% (non-condensing @60°C)
