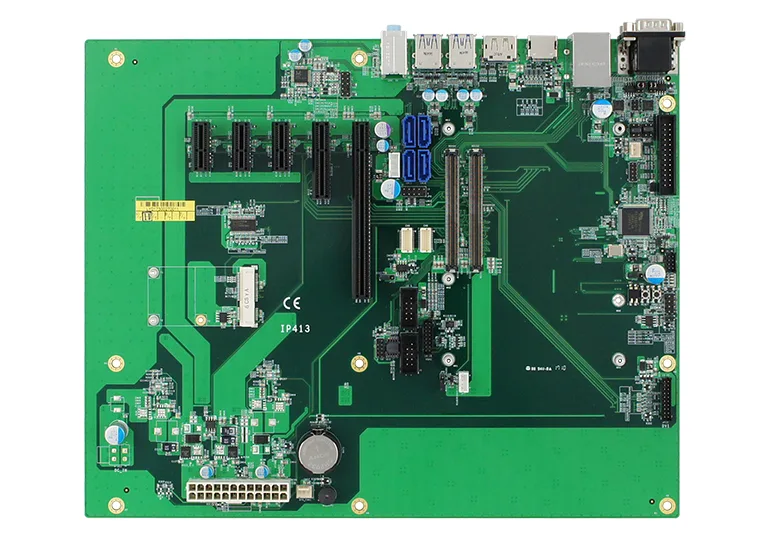

IP413

Carte porteuse COM Express Type6

Carte porteuse COM Express Type6. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

STORAGE

-20°C~80°C (-4°F~176°F)

DISPLAY

1x VGA3x DDI (1x DisplayPort, 1x DVI-D, 1x HDMI)1x 18/24-bit dual-channel LVDS

ETHERNET

Derived from COM Express CPU module

OPERATING TEMP.

0°C~60°C (32°F~140°F)

COM Express Type 6Carrier board

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT IP413 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

21 LIGNES

Form Factor	ATX
Module Interface	COM Express Type-6
Expansions slots	1x PCI-E(x16) slot1x PCI-E(x4) slot3x PCI-E(x1) slots
Mini Type Slots	1x MiniPCI-E socket (full-size, reserved one hole for half-size)
Video Output	1x VGA3x DDI (1x DisplayPort, 1x DVI-D, 1x HDMI)1x 18/24-bit dual-channel LVDS
Ethernet	Derived from COM Express CPU module
I/O Chip	Fintek F81846D-I
Serial Port	4x COM ports-2x COM ports (from Super I/O)-2x COM ports (from CPU module, TX/RX)
USB 2.0	Derived from COM Express module4x USB 2.0
USB 3.0/ 3.1	4x USB 3.0
Serial ATA	Derived from COM Express CPU module4x SATA III
Audio	Built-in ALC662 or ALC888S HD audio codec
Digital I/O	4-in/4-out
Watchdog	256 levels
KB/MS	Yes
Parallel	1x Parallel port via box header
Dimensions (L x W)	305mm x 244mm (12" x 9.6")
Power	ATX / DC-in 12V (only)20+4-pin connector for ATX2x 2-pin connector for 12V DC power-in (IP413-DC only)
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10% ~ 90% (non-condensing)
