IP414

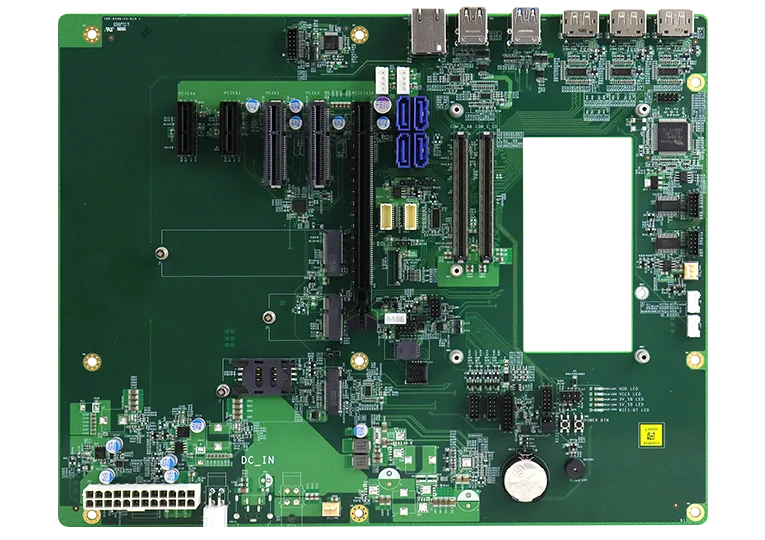

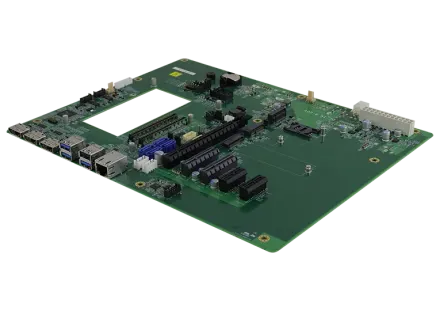

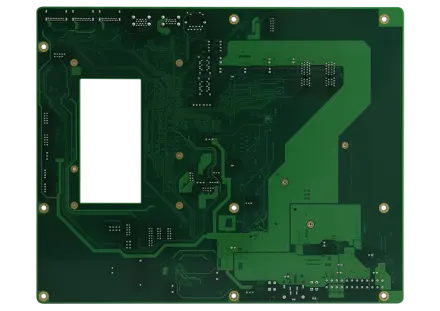

Carte porteuse COM Express Type-6

Carte porteuse COM Express Type-6. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

STORAGE

-20°C~80°C (-4°F~176°F)

DISPLAY

3x DisplayPort1x VGA1x 24-bit dual-channel LVDS1x eDP

ETHERNET

Derived from COM Express CPU module

OPERATING TEMP.

0°C~60°C (32°F~140°F)

COM Express Type 6Carrier board

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT IP414 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

21 LIGNES

Form Factor	ATX
Module Interface	COM Express Type-6
Expansions slots	1x PCI-E(x16) slot [up to Gen.5]2x PCI-E(x4) slot2x PCI-E(x1) slot
Mini Type Slots	1x M.2 (B3052)1x M.2 (M2080)1x M.2 (E2230)
Video Output	3x DisplayPort1x VGA1x 24-bit dual-channel LVDS1x eDP
Ethernet	Derived from COM Express CPU module
I/O Chip	Fintek F81964D-I
Serial Port	COM ports x2 via onboard box-headers (RS232 only)- 2x COM ports (from onboard Super I/O)- 2x COM ports (from CPU module, Tx/Rx only)
USB 2.0	Derived from COM Express module3x USB2.0 (1 for Type-A, 2x via box headers)
USB 3.0/ 3.1	3x USB 3.2 Type-A connectors @edge I/O
Serial ATA	Derived from COM Express CPU module4x SATA III
Audio	Built-in ALC888-S HD audio codec
Digital I/O	4-in/4-out
Watchdog	256 levels
KB/MS	Yes
Parallel	N/A
Dimensions (L x W)	305mm x 244mm (12” x 9.6”)
Power	20+4-pin connector for ATX (IP414)2x 2-pin connector for DC power-in (IP414-DC only)
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10% ~ 90% (non-condensing)
