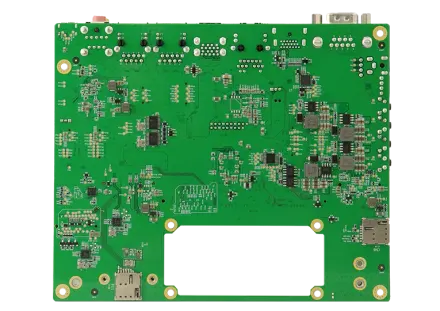

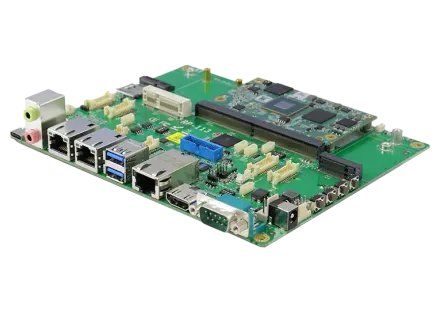

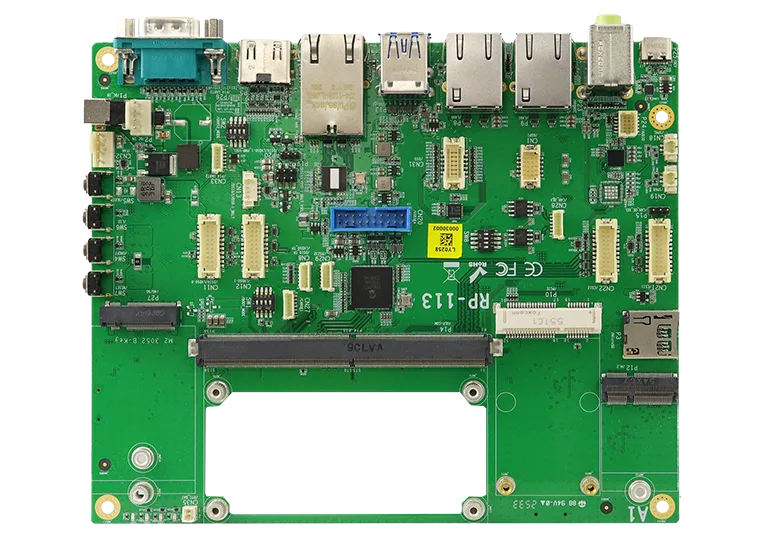

RP-113

Carte porteuse — NXP SMARC™ Module

Carte porteuse — NXP SMARC™ Module. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

OPERATING TEMP.

-40°C ~ 85°C (-40°F ~ 185°F)

POWER INPUT

19V~24V DC-in

FORM FACTOR

Carrier BoardCompliant with SMARC™ 2.2

EDGE I/O

1x RJ45 10GbE2x RJ45 GbE2x USB 3.0 Type A1x USB 2.0 Type C for firmware download1x HDMI1x COM (RS232/422/485)1x SD Slot2x Nano SIM slot1x DC-in jack (19V~24V)1x Headphone & MIC

SMARC 2.2 Carrier BoardCarrier Board for SMARC…

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT RP-113 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

10 LIGNES

Form Factor	Carrier BoardCompliant with SMARC™ 2.2
Edge I/O	1x RJ45 10GbE2x RJ45 GbE2x USB 3.0 Type A1x USB 2.0 Type C for firmware download1x HDMI1x COM (RS232/422/485)1x SD Slot2x Nano SIM slot1x DC-in jack (19V~24V)1x Headphone & MIC
Internal I/O	2x CAN bus 2.0B2x CAN bus via SPI2x USB3.0 (pin header)1x Fan (4-wire)1x 3.3V/5V/12V back light wafer1x MIPI display power (3.3V/5V)1x MIPI-DSI/LVDS 4-lanes1x LVDS 4-lanes1x MIPI-CSI2 2-lanes1x MIPI-CSI2 4-lanes12x GPIOs (1.8V)2x RS232 (RX/TX, pin header)1xI²C (capacitive touch pin header)1x I²S1x QSPI (pin header)1x mPCIe slot (PCIe, USB2.0, PCM)1x M.2 E-Key 2230 slot (PCIe, SDIO, UART, USB 2.0)1x M.2 B-Key 3042/3052 slot (USB 3.0 only)1x Speaker R and L1x RTC battery4x LEDs
Jumpers, Switches & Buttons	1x Boot select switch1x Power button1x Reset button1x Sleep button1x LID button
Power Input	19V~24V DC-in
Dimensions	170mm x 140mm (6.7” x 5.5”)
Environment	Humidity: 0% to 90% RH at 60° C (non-condensing)
Operating Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
OS Support	Based on the CPU module
Certification	CE/FCC Class B
