RP101SMC

Carte porteuse — SMARC Modules RP-101-SMC/RP-102-SMC Carrier Board for SMARC Modules

Carte porteuse — SMARC Modules RP-101-SMC/RP-102-SMC Carrier Board for SMARC Modules. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

OPERATING TEMP.

-40° C to +85° C (-40°F~184°F)

POWER

19V DC-in

DIMENSIONS

Standard Mini-ITX

RP-101-SMC

SMARC V1.1 modules

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT RP101SMC — IBASE Technology

Specifications

14 LIGNES

Form Factor	Standard Mini-ITX
RP-101-SMC	SMARC V1.1 modules
RP-102-SMC	SMARC V1.0 modules
Internal Header/ Connectors	2x CAN bus 2.0B · 1x 18/24bit single CH LVDS · 1x 18/24bit TTL box header · 1x LCD DDC (I²C) · 1x LCD backlight connector · 1x CSI-MIPI · 2x USB 2.0 host · 8x GPIO pin header · 2x RS232 box header · 1x SIM socket · 1x SPDIF · 1x Speaker box header · 1x Micro-SD socket · 2x I²C
Slots	1x SATA II · 1x Full-size Mini PCI-E with USB interface

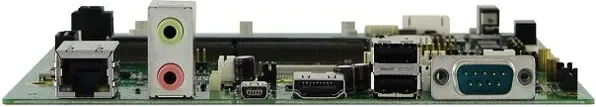

Edge I/O	1x DC-in Jack (12V) · 1x Gigabit · 1x Mic+Headphone · 2x USB 2.0 host · 1x USB OTG · 1x HDMI · 1x COM (RS232/422/485)
Jumpers, Switch and Buttons	1x Boot media select switch (SD/eMMC) · 1x Reset button · 1x Power button · 1x GPI button · 1x (RS232/422/485) selection jumper · 1x Backlight power jumper
Power	19V DC-in
Dimensions	170mm x 170mm (6.7” x 6.7”)
Devices	Linux, Android
Software Support	Non-operating: 3 Hz to 500 Hz, 15 mins
Certification	CE/FCC Class A
Operating Temperature	-40° C to +85° C (-40°F~184°F)
Relative Humidity	0 % to 90 % RH at 60° C (non-condensing)

Features

5 LIGNES

Feature 1	For SMARC form factor modules
Feature 2	19V DC-in, reset, power, RTC function
Feature 3	Supports Gigabit LAN, audio, USB OTG, HDMI, COM (RS232/422/485)
Feature 4	Micro SD socket, Mini PCI-E with USB, SIM socket on board
Feature 5	2x isolated CAN transceiver, TTL, LVDS, HDMI, CSI-MIPI camera

Ordering Information

2 LIGNES

RP-101-SMC	- RISC Carrier Board for SMARC V1.0 modules,12V DC-in, Mini-ITX 170mmx170mm, 2x CAN, Mini PCI-E with USB, Resistive touch header (4-wires), 2x USB header,1x I²C header, 18/24 bit LVDS, TTL connector, Line in/ Line out, EEROM, CSI MIPI bus, 8x GPIO,2x RS232,1x RS232/422/485, VDDIO=1.8V
RP-102-SMC	- RISC Carrier Board for SMARC V1.0 modules,12V DC-in, Mini-ITX 170mmx170mm, 2x CAN, Mini PCI-E with USB, Resistive touch header (4-wires), 2x USB header,1x I²C header, 18/24 bit LVDS, TTL connector, Line in/ Line out, EEROM, CSI MIPI bus, 8x GPIO,2x RS232,1x RS232/422/485, VDDIO=3.3V
