AA700

Ordinateur Edge AI robotique — AMD Ryzen™ AI Embedded X100 Series Processors

Ordinateur Edge AI robotique — AMD Ryzen™ AI Embedded X100 Series Processors. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

AMD Ryzen™ AI Embedded X100 Series Processors

MEMORY

4x LPDDR5 up to 256GB/8533

STORAGE

1x M.2-2280

OPERATING TEMP.

0°C ~ 45°C

Edge AI ComputerAI Computing Platform

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT AA700 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

23 LIGNES

System Mainboard	CHPCA100 + Carry board
CPU Type	AMD Ryzen™ AI Embedded X100 Series Processors
System Speed	2.9 GHz ~ 5.1 GHz
Memory	4x LPDDR5 up to 256GB/8533
AI Inference Computing Power	Up to 130 TOPs

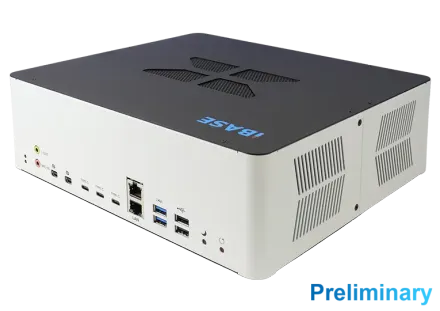

Front Panel External I/O	2x Mini DP1x Mic in and 1x Line out)3x USB Type-C2x LAN 5GbE2x USB 3.02x USB 2.01x Reset and 1x Sleep2x LED (GPIO header / TBD by client)

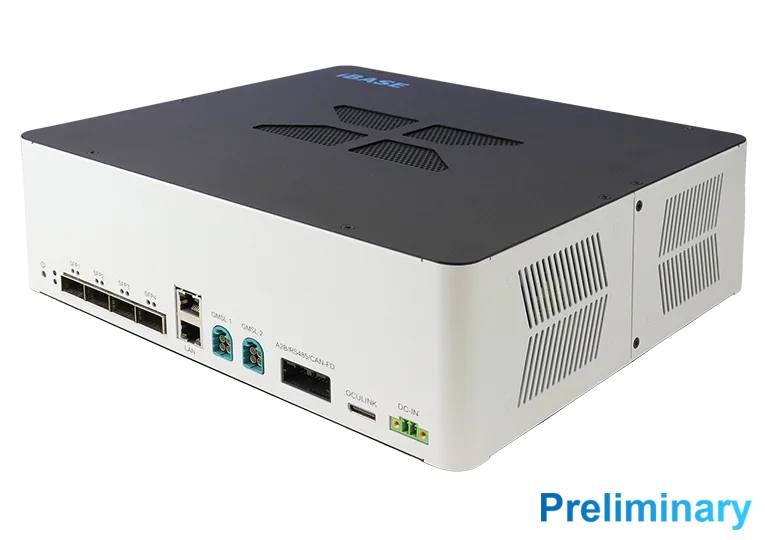

Rear Panel External I/O	4x QSFP 10GbE2x GbE LAN(Ethercat/TSN)2x GMSL (FAKRA x4 Camera each port)1x MINI50 (2x CAN-FD + 1x RS485 + 1x A2B)1x OCULINK1x DC-IN2x LED (GPIO header / TBD by client)
Expansion Slot	1x M.2 M-Key Type 22801x M.2 E-Key, Type:2230
Storage	1x M.2-2280
Power Requirement	12V ~ 24V DC
Power Supply	1x DC in +12V (-10% tolerance) ~ +24V (+10% tolerance) input, Connector type: 4-pin, 45 W
Construction	SGCC
Chassis Color	Black and White
Mounting	Wall mount
Weight	3.5 kg
Dimensions	275mm x 244mm x 88mm
Operating Temperature	0°C ~ 45°C
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	0%~ 90% (non-condensing)
Vibration	Operatiing: 1 grms / 3~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE, FCC & LVD
Operating System	Windows 11 64-bitsUbuntu 64-bitsYocto
