AMS302

AMS302 Expandable Fanless and Compact System (Din rail mountable) for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP

AMS302 Expandable Fanless and Compact System (Din rail mountable) for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors (35W TDP. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

7th/6th Generation Intel® Core™ i7/i5/i3 Desktop processors (35W TDP)

MEMORY

2x DDR4-2133 SO-DIMM, Max. 32GB

STORAGE

2x 2.5'' SSD (1x internal and 1x external-accessible) + · 1x mSATA socket

OPERATING TEMP.

-10°C to 60°C (14°F~140°F) *with air flow · -10°C to 50°C (14°F to 122°F) without air flow

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT AMS302 — IBASE Technology

Specifications

19 LIGNES

System Mainboard	MB300 with Intel® Q170 PCH
CPU Type	7th/6th Generation Intel® Core™ i7/i5/i3 Desktop processors (35W TDP)
System Speed	Up to 3.4GHz
Memory	2x DDR4-2133 SO-DIMM, Max. 32GB
Construction	Aluminum and steel
Chassis Color	Sliver
Front Panel External I/O	2x Antenna hole for WLAN module

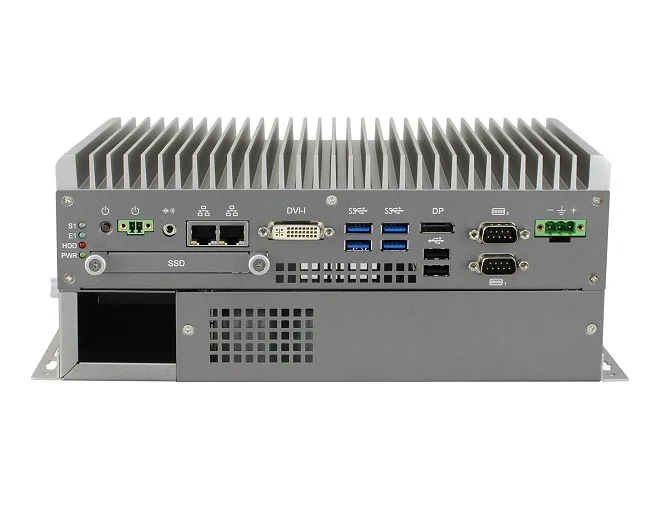

Rear Panel External I/O	1x DVI-I + 1x DisplayPort connector · 1x Audio jack for Line-out · 4x USB 3.0 ports, 2x USB 2.0 ports · 1x Red HDD LED, 1x Green PWR LED, 2x error LED by programming · 1x power button · 1x 2-pin terminal block for external power button · 1x RS232/422/485 port for COM#1 · 1x RS232 port for COM#2 · 2x RJ45 Gigabit Ethernet port · 1x 3 pins DC-in terminal block type for 24V
Expansion Slots	1x Mini PCI-E sockets (full-sized) · 1x PCI-E(x8) slot · 1x PCI-E(x4) slot
Storage	2x 2.5'' SSD (1x internal and 1x external-accessible) + · 1x mSATA socket
Mounting	Desktop or wall mounting (wall mount kit included) · Side mounting · DIN rail mounting (optional)
Weight	3.3kg
Dimensions	275mm (W) x 140mm (D) x 117mm (H) · 10.83” (W) x 5.51” (D) x 4.61” (H)
Certification	CE / LVD / FCC Class B
Operating Temperature	-10°C to 60°C (14°F~140°F) *with air flow · -10°C to 50°C (14°F to 122°F) without air flow
Storage Temperature	-20°C to 80°C (-4°F to 176°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operation
Operatiing	0.25 grms / 5~500Hz / random operation

Features

8 LIGNES

Feature 1	Compact Fanless system by for IBASE MB300 customized board
Feature 2	Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors (35W TDP)
Feature 3	2MB MRAM module (optional)
Feature 4	Front removable drive bay for HDD/SSD (supports RAID 0/1)
Feature 5	1x PCI-E(x8) + 1x PCI-E(x4) expansion slot
Feature 6	Over/Under/Reverse voltage protection
Feature 7	Wall mount and Din rail mount compatibility
Feature 8	iSMART, iAMT (11.6)

Ordering Information

4 LIGNES

AMS302	- Fanless system with MB300, w/ Intel® Core™ i7/i5/i3 Desktop processor, 2x COM, 2x 4GB memory, 1x 2.5” 64GB MLC industrial-grade SSD, 1x PCI-E(x8) + 1x PCI-E(x4) expansion slots, w/o power adaptor
PS=24v180W	- 180W (24V@7.5A) power adaptor, bare wire type
AMS300-HDBRK	- 2nd HDD/Storage Internal Braket
Ant-WIRELESS	- WiFi/BT antenna kit
