EC3020

Ordinateur Edge AI — NVIDIA® Jetson Orin™ NX and Orin™ Nano Series

Ordinateur Edge AI — NVIDIA® Jetson Orin™ NX and Orin™ Nano Series. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

NVIDIA® Jetson Orin™ NX 16GB: 8-core Arm® Cortex®- A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®- A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3NVIDIA® Jetson Orin™ Nano 8GB and 4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3

MEMORY

NVIDIA® Jetson Orin™ NX 16GB: 16GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ Nano 8GB: 4GB 64-bit LPDDR5 51 GB/s

STORAGE

1x M.2 2280 M-key for NVMe (Default NVMe 256 GB)

OPERATING TEMP.

-25°C~40°C (Orin NX super mode)-25°C~60°C (Orin NX normal/Nano normal/Nano super mode)

Edge AI ComputerAI Computing Platform

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT EC3020 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

23 LIGNES

System Mainboard	NVIDIA® Jetson Orin™ NX 16GB/8GBNVIDIA® Jetson Orin™ Nano 8GBModule with carrier board
CPU Type	NVIDIA® Jetson Orin™ NX 16GB: 8-core Arm® Cortex®- A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®- A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3NVIDIA® Jetson Orin™ Nano 8GB and 4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3
System Speed	EC3020-NX16/ EC3020-NX-8: 2.0 GHzEC3020-NANO8: 1.7 GHz
Memory	NVIDIA® Jetson Orin™ NX 16GB: 16GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4GB/sNVIDIA® Jetson Orin™ Nano 8GB: 4GB 64-bit LPDDR5 51 GB/s
AI Inference Computing Power	NX 16GB delivery up to 157 TOPSNX 8GB delivery up to 117 TOPSNano 8GB delivery up to 67 TOPS

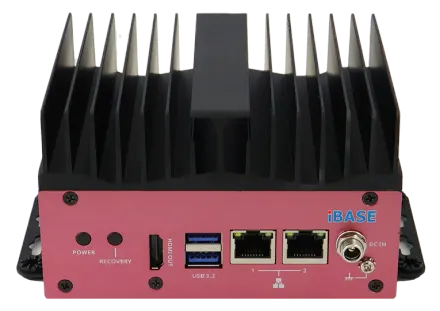

Front Panel External I/O	2x Gigabit Ethernet (1x PoE, Optional)1x HDMI Type-A2x USB 3.2 Gen2 Type-A1x USB 2.0 Type-C for Recovery1x Power button1x Recovery button

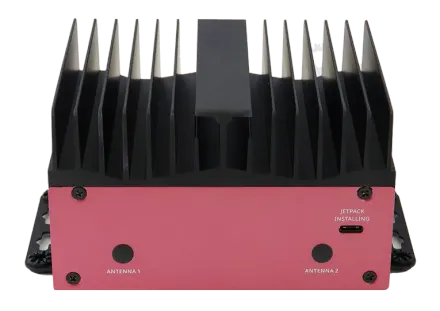

Rear Panel External I/O	2x Antenna1x 12-24V DC Jack input with Lock
Expansion Slot	1x M.2 2230 E-key for WiFi/BT, 1x 20-pin Expansion Terminal Block supports 2x I2C, 2x UART, 4x GPIOs, 1x CAN PSE Board/OOB Board/5G Daughter Board (Optional)
Storage	1x M.2 2280 M-key for NVMe (Default NVMe 256 GB)
Power Requirement	DC 12~24V
Power Supply	90W
Construction	Aluminum & steel
Chassis Color	Black & Red
Mounting	wall mount
Weight	1.25 kg
Dimensions	126mm (W) x 96mm (D) x 73.9mm (H)
Operating Temperature	-25°C~40°C (Orin NX super mode)-25°C~60°C (Orin NX normal/Nano normal/Nano super mode)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Relative Humidity	5%~95% (non-condensing)
Vibration	Operating: 1 grms / 3~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE/FCC, Class A
Operating System	Ubuntu 22.04JetPack 6.2
