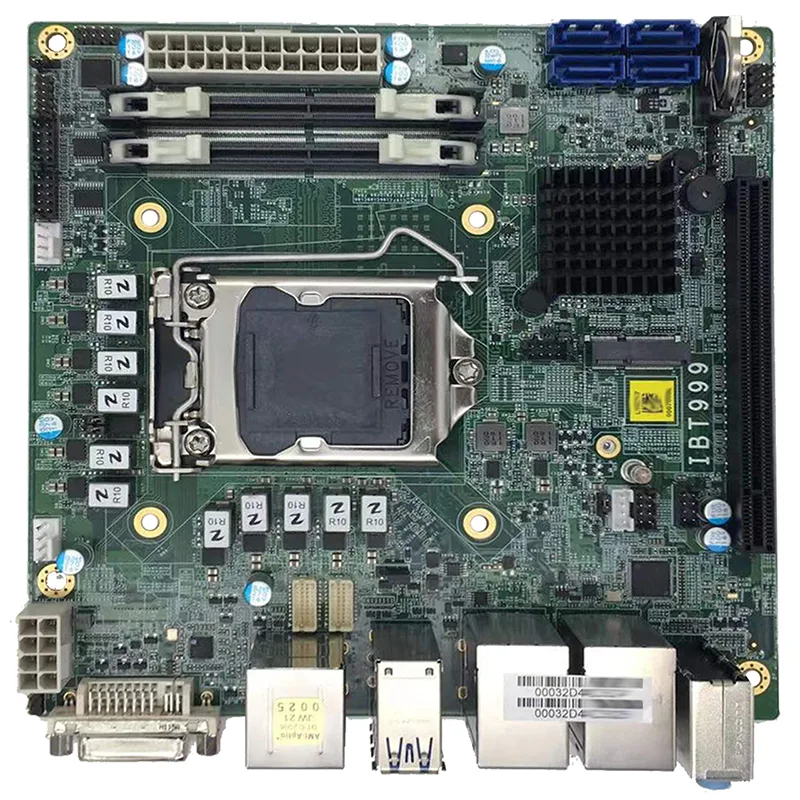

IBT999

10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® with Intel® Q470E PCH Mini-ITX Motherboard

10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® with Intel® Q470E PCH Mini-ITX Motherboard. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

FcLGA1200

MEMORY

2x DDR4-21933/2666@1.2v, Max. 64GB · 260-pin SO-DIMM (supports ECC by CPU SKU)

STORAGE

-20°C ~ 80°C (-4°F ~ 176°F)

DISPLAY

Intel® UHD Graphics integrated GD Gfx Supports, HDMI (1.4), DVI-D and eDP/24-bit Dual channel LVDS

Legacy catalogueIBT Technologies

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT IBT999 — IBT Technologies

Specifications

23 LIGNES

CPU Socket	FcLGA1200
CPU	10th Gen Intel® Core™ processors, up to 4.7GHz
PCH	Intel Q470E PCH
Memory Types	2x DDR4-21933/2666@1.2v, Max. 64GB · 260-pin SO-DIMM (supports ECC by CPU SKU)
BIOS	256M AMI BIOS 8
Watchdog Timer	256 levels
H/W Monitor	Yes
Expansion Slots	1x M.2 (E-key@2230) CNVi 1x M.2 (M-key@2280) NVMe 1x PCI-E (x16)
Graphics Controller	Intel® UHD Graphics integrated GD Gfx Supports, HDMI (1.4), DVI-D and eDP/24-bit Dual channel LVDS
Ethernet	1st LAN: Intel® I219LM 2nd LAN: Intel® I211AT
I/O Chip	Fintek F81964D-I: COM1~COM2(RS232) (2x5 pin-header) Digital I/O (4 in/4 out) (2x5 pin-header)
USB	10x USB 3.x (read panel) 6x USB 2.x (pin-header 2.0mm)
Serial ATA	4x SATAIII
Audio	built-in PCH HD audio + Realtek ALC888S codec (Audio 5.1)
Management	iAMT (14.0)
TPM	TPM(2.0)
Dimensions (L X W)	170mm x 170mm
Advanced features	1. LAN Wakeup 2. SATA III Raid 0/1 3. EuP/ErP (Via Super I/O) 4. Support DCI 5. RTC battery with battery holder 6. AT mode by jumper setting 7. CE (EN55032:2012); FCC Class B (0 ohm co-lay)
Power Input	ATX standard 24-pin type & 8 pin type (working with 20 and 4)
Power Consumption	Intel® Core™ i5-10500E, 3.00GHz, with 2x 4GB DDR4 2133 +12V: 6.08A +5V: 1.19A +5Vsb: 0.11A +3.3V: 0.90A
Operating Temperature	0°C ~ 60°C (32°F~140°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	90% (non-condensing @60°C)

Features

7 LIGNES

Feature 1	10th Gen Intel® Core™ / Pentium® processors, up to 4.7GHz
Feature 2	2x DDR4 SO-DIMM, Max. 64GB, ECC compatible
Feature 3	Intel® UHD Processor integrated graphics (3x Channels)
Feature 4	Dual Intel® Gigabit LAN
Feature 5	16x USB channels,2x COM, 4x SATAIII
Feature 6	2x M.2(E-key, M-Key), 1x PCIe 16x
Feature 7	Watchdog timer, iAMT (14.0), TPM (2.0), Digital I/O

Ordering Information

1 LIGNES

IBT999

- LGA1200 Q470E Mini-ITX motherboard w/ DVI-D, HDMI, LVDS, Dual Gigabit LAN, RAID, iAMT(14), TPM(2.0)
