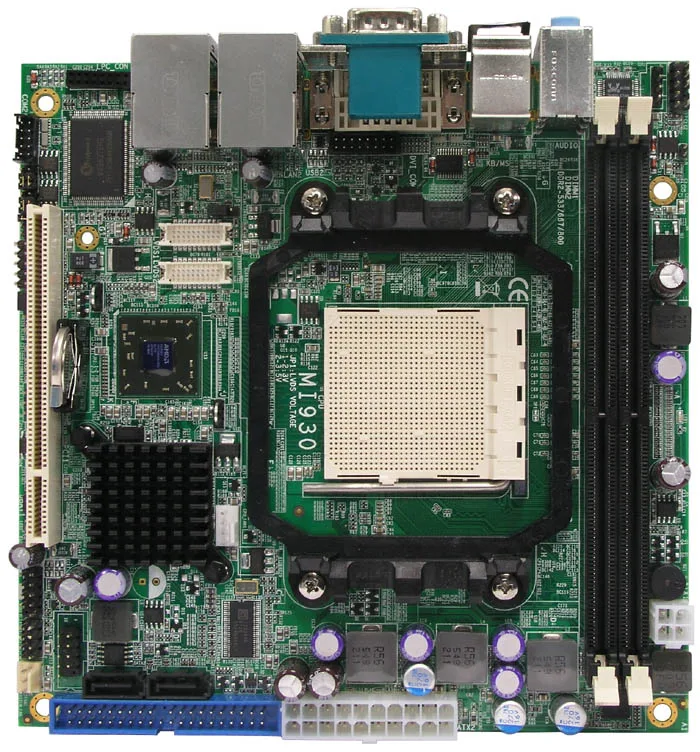

| CPU Socket | AM2 socket (940 pin) |
| CPU | Supports AMD Athlon™ 64 / AMD Athlon™ 64 x2 (dual core) / Sempron™ 64-bit processor integrated with DDRII memory controller in CPU |
| CPU Front Side Bus ( FSB ) | 800MHz / 1066MHz / 1333MHz |
| Chipset | AMD M690E + SB600 |
| BIOS | Award BIOS, ACPI supported |
| System Memory | Two DDR2 sockets support up to 4GB DDR2 SDRAM PC533/667/800 DDR2 SDRAM |
| Integrated VGA | AMD M690E built-in Radeon X700 VGA controller Supports CRT, DVI, and LVDS; dual display (CRT with DVI or LVDS); DVI with LVDS) |
| LAN | Two Marvell 88E8053 PCI-Express Gigabit LAN |
| Audio | ATi SB600 built-in high definition audio controller with Realtek codec ALC888 for 7.1 CH audio |
| LPC I/O | Winbond W83627EHG chipset Supports COM1 (RS-232), COM2 (RS-232/422/485), hardware monitoring |
| Serial ATA Interface | ATi SB600 built-in SATA II (3.0Gb/sec) supports 2 ports and RAID 0, 1 function · Supports Socket AM2 for AMD Athlon™ 64 / Athlon™ 64 X2 / Sempron™, up to 2.8GHz · 2x DDR2 DIMM, Max. 4GB · AMD M690E built-in Radeon X700 VGA for CRT, TV out, DVI and LVDS (dual display supported) · 2x Marvel 88E8052 PCI-E Gigabit LAN · 2x SATA II, 2x COM, 6x USB, optional 4x COM · Watchdog timer, Digital I/O, 1x PCI slot |
| PATA Interface | ATi SB600 built-in one channel UDMA 33/66/100 |
| Serial Ports | 1x RS-232/422/485 and 1x RS-232 ports |
| USB (2.0) | ATi SB600 built-in USB 2.0 controller supports 6 ports |
| Digital I/O | 4 in / 4 out |
| Watchdog Timer | Generates system reset; 256 levels |
| Hardware Monitoring | Monitors system/CPU temperature and voltage status |
| Expansion Slot | PCI slot 8x2 pin header for adaptor card: - ID394 (2 or 4 serial ports) - ID395 (TPM 1.2 function) |
| Edge Connectors | PS/2 KB/Mouse Mini DIN, COM1 and DVI, 2x RJ-45, 4x USB, Triple jack for audio |
| Power Connector | ATX 20-pin + 4-pin 12V connectors |
| Form Factor | Mini-ITX |
| Dimensions | 170mm x 170mm (6.7" x 6.7") |
| Environmental Factors | Operating Temperature: 0°C~60°C (32°F~140°F) · Storage Temperature: -20°C~80°C (-4°F~176°F) · Relative Humidity: 10%~90% (non-condensing) |
