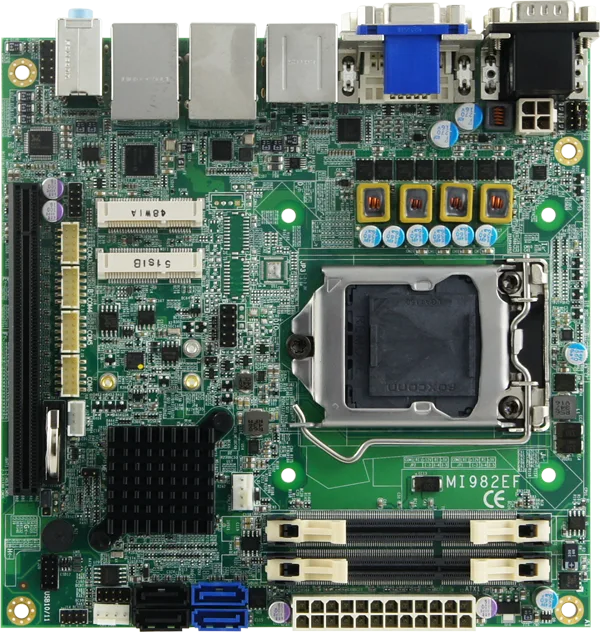

MI982

Carte mère 4th Gen. Intel Mini-ITX — Intel® H81 PCH - 4th Generation Intel® Core™ i7/i5/i3/Pentium Processor

Carte mère 4th Gen. Intel Mini-ITX — Intel® H81 PCH - 4th Generation Intel® Core™ i7/i5/i3/Pentium Processor. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

LGA1150 for 4th Generation Intel® Core™ DT i7/i5/i3/Pentium processors

MEMORY

2x DDR3-1600 SO-DIMM, Max 16GB (Non-ECC)

STORAGE

N/A

DISPLAY

Supports VGA, DVI-D and DisplayPort

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT MI982 — IBASE Technology

Specifications

24 LIGNES

CPU	LGA1150 for 4th Generation Intel® Core™ DT i7/i5/i3/Pentium processors
System Memory	2x DDR3-1600 SO-DIMM, Max 16GB (Non-ECC)
System Chipset	Intel® H81 PCH
BIOS	AMI BIOS
Watchdog Timer	256 levels
SSD	N/A
H/W Monitor	Yes
Expansion Slots	1x PCI-E(16x) slot · 2x Mini PCI-E (1x full-sized, 1x half-sized)
VGA Controller	4th Generation Intel® Core™ DT i7/i5/i3/ Pentium · processors integrated graphics
VGA Memory	Max. shared memory-1024MB
Display Interface	Supports VGA, DVI-D and DisplayPort
LAN Controller	Intel® I217LM Gigabit LAN PHY · Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
LAN Connector	2x RJ-45 on board
I/O Chipset	Fintek F81866AD-I · 1x RS-232/422/485 (jumperless selection) · 5x RS232, 4x SATA III
USB	2 ports USB 3.0 on board · 4 ports USB 2.0 on board · 2 ports USB 2.0 via pin header
Audio	Intel® H81 PCH built-in High Definition Audio controller · + Realtek ALC892 with 7.1 channel
Others	Digital I/O [4-in/4-out], iSMART 3.0, EuP/ErP
Dimensions	170mm x 170mm (6.7“ x 6.7“)
Max. Power Requirement	Intel® Core™ i7-4770TE 2.3 GHz · w/ 2GB DDR3-1333
+3.3V	0.46A +5V: 1.28A
+5Vsb	0.23A +12V: 3.54A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)

Features

7 LIGNES

Feature 1	4th Generation Intel® Core™ i7/i5/i3 processor, up to 4.0GHz
Feature 2	2x DDR3-1600 SO-DIMM, Max 16GB
Feature 3	Supports DVI-D, VGA and DisplayPort
Feature 4	2x Intel® PCI-E Gigabit LAN
Feature 5	2x USB 3.0, 6x USB 2.0, 6x COM, 2x SATA III, 2x SATA II
Feature 6	2x Mini PCI-E slots,1x PCI-E(16x)
Feature 7	Watchdog timer, Digital I/O, iSMART 3.0

Ordering Information

1 LIGNES

MI982EF

MI982
