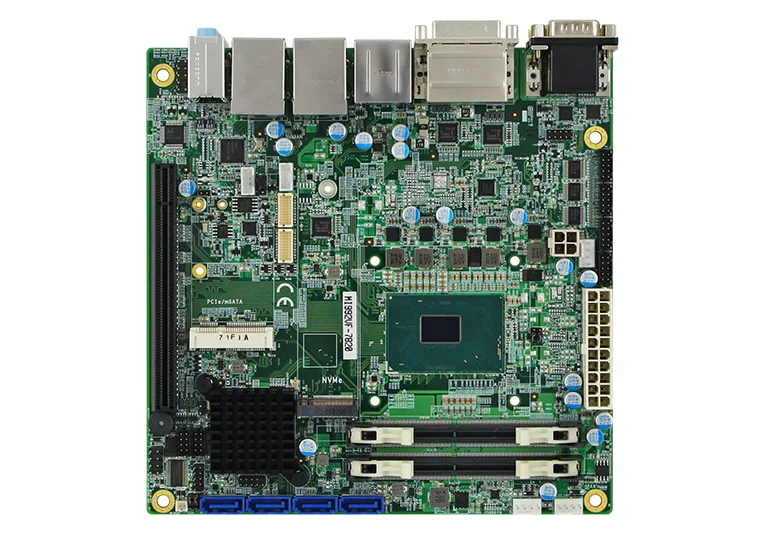

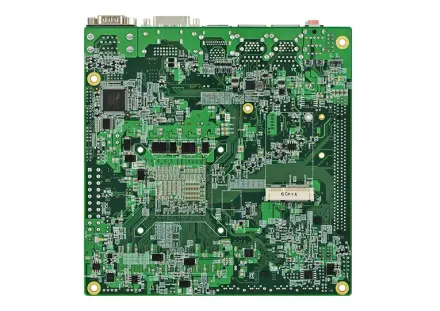

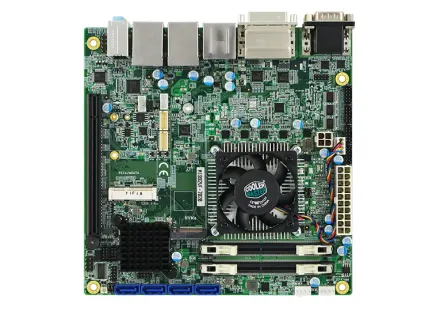

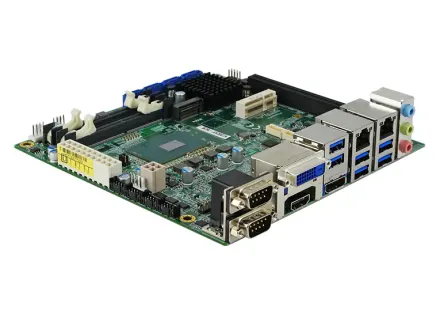

MI992

Carte mère Mini-ITX — 7th/6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 Processors

Carte mère Mini-ITX — 7th/6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 Processors. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

BGA1440

MEMORY

2x DDR4 SO-DIMM, Max.32GB (supports ECC by CPU SKUs)

STORAGE

1x mSATA via Mini PCI-E (via SATA III and PCI-E)1x M.2 slot (Thru SATA III and PCI-E)

DISPLAY

Supports DVI-D, HDMI (1.4), DisplayPort and 24-bit dual-channel LVDS

Mini-ITX MotherboardMotherboard

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT MI992 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

26 LIGNES

CPU Socket	BGA1440
CPU	7th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 processors, up to 3.7GHz
PCH	MI992VF series: Intel® CM238 PCHMI992EF series: HM175 PCH
Memory	2x DDR4 SO-DIMM, Max.32GB (supports ECC by CPU SKUs)
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x mSATA via Mini PCI-E (via SATA III and PCI-E)1x M.2 slot (Thru SATA III and PCI-E)
Expansion Slots	1x PCI-E (x16)
Mini Type Slots	2x Mini PCI-E1x M.2
Graphics Controller	7th Gen Intel® Xeon® / Core™ i7/i5/i3 processor integrated
Video Output	Supports DVI-D, HDMI (1.4), DisplayPort and 24-bit dual-channel LVDS
Ethernet	MI992VF series: Intel® I219LM Gigabit LAN PHYMI992EF series: Intel® I219V Gigabit LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O Chip	Fintek F81846AD-I
Serial Port	N/A
USB 2.0	4x USB 2.0 via pin-header
USB 3.X	6x USB 3.0 on board
Serial ATA	MI992VF series: 4x SATA IIIMI992EF series: 2x SATA III
Audio	Intel® CM238 / HM175 PCH built-in HD audio + Realtek ALC888S codec
TPM	TPM (2.0)
Others	Digital I/O (4-in/4-out), RAID, IAMT (11.6), iSMART
Dimensions (L x W)	170mm x 170mm (6.7" x 6.7")
Power Consumption	Intel® Core i7-7820EQ, 3.00GHz, w / 2x 4GB DDR4-2133+12V: 4.67A+5V: 1.39A+5VSB: 0.05A+3.3V: 0.35A
Operating Temperature	0°C ~ 60°C (32°F~140°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	90% (non-condensing @60°C)
