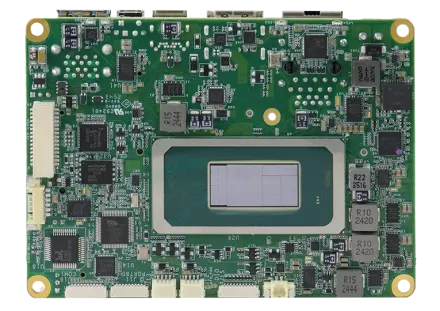

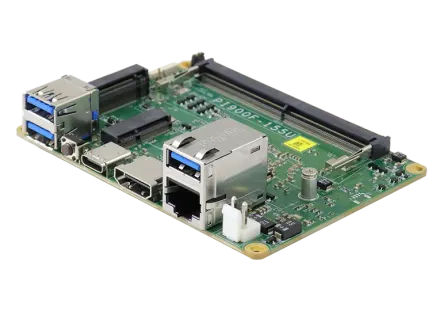

PI900

Carte mère PICO-ITX — Intel® Core™ Ultra 100U Series Processors (Meteor Lake)

Carte mère PICO-ITX — Intel® Core™ Ultra 100U Series Processors (Meteor Lake). Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel® Core™ Ultra 100U Series

MEMORY

1x DDR5-5600 SO-DIMM, Max. 48GB

STORAGE

NVMe

DISPLAY

1x HDMI (2.0)1x DisplayPort (1.4a) via Type-C1x LVDS

PICO ITX MotherboardMotherboard

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT PI900 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

25 LIGNES

CPU	Intel® Core™ Ultra 100U Series
PCH	N/A
Memory	1x DDR5-5600 SO-DIMM, Max. 48GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	NVMe
Expansion Slots	1x M.2 (M2280), 1x M.2 (E2230)
Mini Type Slots	1x M.2 (M2280, supports NVMe & SATA)1x M.2 (E2230, supports CNVi)+WiFi / BT
Graphics Controller	Intel® SoC integrated graphics
Video Output	1x HDMI (2.0)1x DisplayPort (1.4a) via Type-C1x LVDS
Ethernet	1x Realtek 8125BG-CG PCIe 2.5GbE LAN port
I/O Chip	Fintek F81804U-I
Serial Port	1x RS232/422/485
USB 2.0	2x USB 2.0 thru onboard connectors
USB 3.X	3x USB 3.2 @ edge I/O,1x USB 3.2 (Type-C)
Serial ATA	via M.2 M-key socket
Audio	Realtek Codec ALC888S-VD2-GR
TPM	dTPM
Others	Digital I/O (4-in/4-out), +12V DC input
Dimensions (L x W)	100mm x 72mm (3.94” x 2.84”)
Power Consumption	Intel® Core® Ultra 7 155U / up to 4.80GHz w/ 1x 32GB DDR5 – 5600 +12V :5.93AIntel® Core® Ultra 5 125U / up to 4.30GHz w/ 1x 32GB DDR5 – 5600 DIMM +12V :5.91A
Operating Temperature	0°C~+60°C ( 32°F~+140°F)
Storage Temperature	-20°C~+80°C (-4°F~+176°F)
Relative Humidity	10% ~ 90% (non-condensing)
