IPPC19A9RE

19 inch modulaire panel-pc for 2nd/3rd Generation Intel® Core™ Processor Industrial Panel PC for Automation

19 inch modulaire panel-pc for 2nd/3rd Generation Intel® Core™ Processor Industrial Panel PC for Automation. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

2ne/3rd Generation Intel® Core™ i3-2340UE

MEMORY

2x DDR3 1333 SO-DIMM up to 16GB

STORAGE

CFast / HDD / SSD

DISPLAY

19" TFT LCD

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT IPPC19A9RE — IBASE Technology

Specifications

24 LIGNES

System Mainboard	IB907
CPU Type	2ne/3rd Generation Intel® Core™ i3-2340UE
System Speed	1.3GHz
Memory	2x DDR3 1333 SO-DIMM up to 16GB
Construction	Aluminum and SGCC
Chassis Color	Silver
Front Panel External I/O	Function keys / LAN and COM port monitor LED

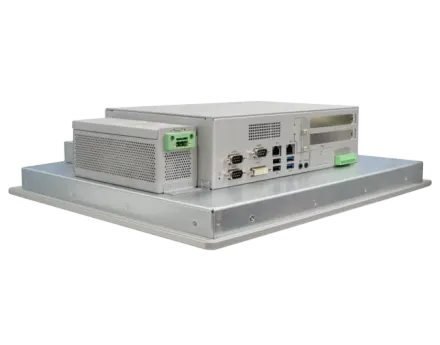

Rear Panel External I/O	1x DVI-I connector · 3x DB9 for COM1/2(RS-232/422/485), · COM 3 (RS-232 only) · 1x 10-pin terminal block for 1xDigital I/O · 2x RJ45 for GbE LAN · 4x USB connector; USB1/2 USB2.0 only, USB3/4 USB3.0 · 1x Line-out microjack · 1x Mic-in microjack · 1x CFast slot · 1x 10-pin Digital IO
Expansion I/O	2x PCI slots
Storage	CFast / HDD / SSD
Mounting	VESA mount, 75mm x 75mm and 100mmx100mm
Power Supply	12V-24V Wide Range DC input(ID452)
Dimensions	465mm(W) x 390mm(D) x 109.5mm(H)
LCD Type / Size	19" TFT LCD
LCD Color	16.7M colors
Touch Screen	5-wire resistive touch panel
Display Resolution	1280x1024
LCD Brightness	350 cd/cm2
Viewing Angle	170(H)/160(V)
Backlight MTBF	50,000 Hrs
Protection Class	IP65 (Front panel with wall mount)
Operating Temperature	0°C~ 45°C (32°F~113°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	5 ~ 90% @ 45°C, non-condensing
