IPPCH10
PC À ÉCRAN TACTILE / EN STOCK

IPPCH10

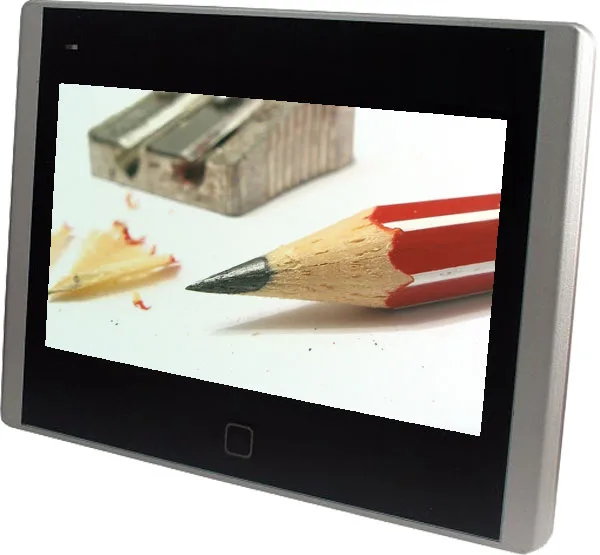

Fanless 10 Inch ARM low power panelpc Samsung S3C2440A-40 400MHz HMI

Fanless 10 Inch ARM low power panelpc Samsung S3C2440A-40 400MHz HMI. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU
SAMSUNG S3C2440A-40 400MHz processors
MEMORY
Onboard DDR2 128MB 400 MHz
STORAGE
Onboard 128M Flash
DISPLAY
None
Legacy catalogueIBASE Technology
DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE
N° DE PIÈCE FABRICANT IPPCH10 — IBASE Technology

Specifications

37 LIGNES
ProcessorSAMSUNG S3C2440A-40 400MHz processors
System MemoryOnboard DDR2 128MB 400 MHz
USBUSB: 1x Device, 1x Host
Serial/Parallel2x RS232/422/485 COM1/2
AudioNone
Display InterfaceNone
LANNone
Digital I/ONone
Keyboard/MouseNone
Membrane ControlFront home key
Power24V±20% DC, isolated power
HDDOnboard 128M Flash
Removable Slot1x SD card
Onboard Expansion BusNone
Expansion SlotNone
Max. Resolution800 x 480
Max. Color65536
Luminance (cd/m2)250
View Angle (H/V)140/100
Contrast500:1
Backlight Lifetime(hrs)20000
Touch Type4-wire resistive touch
InterfaceProcessor built-in
Light Transmission (%)78
Power Input24V±20% DC, Isolated power
ConstructionPlastic
IP RatingIP65 (Front panel with mount)
MountingPanel mount only
Dimensions (mm)279.5 x 195.5 x 40.1
Operating System SupportLinux 2.6X
Net Weight (kgs)1.52kg
Operating Temperature(°C)0°C~ 50°C
Storage Temperature(°C)-20°C~60°C
Storage Humidity10~90RH (No frosting)
CertificationFCC class A
EN 550222006 complies, class A, EN 61000-3-2:2006
EN 61000-3-31995 + A1:2001 + A2:2006 standard

Features

6 LIGNES
Feature 1RISC 400MHz
Feature 2Supports 64M Bytes memory
Feature 3Front keypads for OSD adjustment and function keys for IPPC H07/N10
Feature 4IP65 front-panel protection
Feature 5Resistive touch panel
Feature 6Fanless design

Ordering Information

4 LIGNES
IPPC-H10P (With iFace)- 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), USB (1 Host/1Device), 24V ± 20% DC
IPPC-H10LP (Pure Linux)- 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), USB (1 Host/1Device), 24V ± 20% DC
IPPC-H10N (With iFace)- 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), COM3 (RS422/485), USB (1 Host/1Device), Ethernet, SD Card, 24V ± 20% DC
IPPC-H10LN (Pure Linux)- 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), COM3 (RS422/485), USB (1 Host/1Device), Ethernet, SD Card, 24V ± 20% DC
