CARTES CPU PICMG / EN STOCK

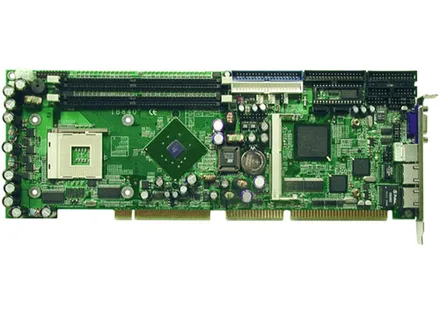

IB840

SBC P4 PICMG — MicroAGP / 800MHz FSB / SATA support

IB840 / IB840F P4 PICMG SBC with MicroAGP, 800MHz FSB and SATA support. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel Pentium 4 Socket 478, 2.0GHz ~ 3.20GHz+

FSB

800MHz / 533MHz / 400MHz

CHIPSET

Intel 865G

MEMORY

Two DDR sockets up to 2GB DDR SDRAM PC266/333/400

PICMG SBCIntel Pentium 4MicroAGPLegacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT IB840 — IBASE Technology

Specifications

13 LIGNES

CPU Socket	Socket 478
CPU	Intel Pentium 4 // 2.0GHz ~ 3.20GHz+
Front Side Bus	800MHz / 533MHz / 400MHz
Chipset	Intel 865G
System Memory	Two DDR sockets support up to 2GB DDR SDRAM PC266/333/400
Integrated VGA	Integrated 82865G AGP4X VGA for CRT interface
Optional Graphics	MicroAGP VGA expansion options: ATI Mobility M7 / M9 / M10 or LVDS / TV-out MicroAGP
Primary LAN	Intel 82551 10/100Mb Ethernet
Secondary LAN	Intel 82547EI Gigabit Ethernet (optional)
Serial ATA	Supports 2 ports
USB	Supports 4 USB 2.0 ports
Form Factor	Full-size PICMG CPU card
Dimensions	338mm x 122mm

Ordering Information

2 LIGNES

IB840(-R)	- Socket 478 Intel 865G PICMG Full Size CPU Card, FSB 800MHz, support DDR, 82551 LAN x1, VGA, MicroAGP for optional VGA expansion
IB840F(-R)	- Socket 478 Intel 865G PICMG Full Size CPU Card, FSB 800MHz, support DDR, 82551 LAN x1, 82547 Gigabit LAN x1, VGA, MicroAGP for optional VGA expansion

IB840

Specifications

Ordering Information

Other cartes cpu picmg
