IB825

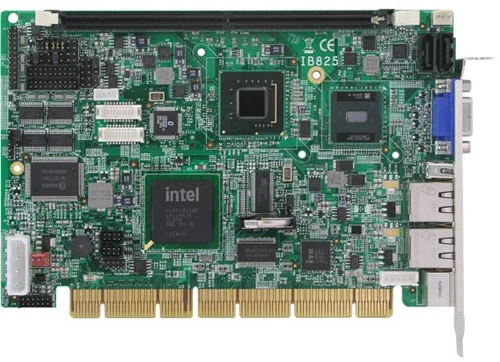

Carte CPU Intel® Atom™ N270 Half Size PISA

Carte CPU Intel® Atom™ N270 Half Size PISA. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel® Atom™ N270 processor, 1.6GHz, 533MHz FSB

MEMORY

One DDR2 DIMM sockets, single channel · Supports up to 2GB DDR2 533 SDRAM · VGA · Intel® Graphics Media Accelerator (GMA 950) · supports CRT (with D-Sub connector on edge) · LVDS · Chrontel CH7308B for 24-bit dual channel LVDS · 2x DF13 sockets on board

STORAGE

-20°C~80°C (-4°F~176°F)

ETHERNET

2x Intel® 82583V PCI-E Gigabit LAN · RJ-45 connector on edge

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT IB825 — IBASE Technology

Specifications

21 LIGNES

CPU	Intel® Atom™ N270 processor, 1.6GHz, 533MHz FSB
Chipset	Intel® 945GSE + ICH7M
BIOS	Award BIOS, ACPI supported
System Memory	One DDR2 DIMM sockets, single channel · Supports up to 2GB DDR2 533 SDRAM · VGA · Intel® Graphics Media Accelerator (GMA 950) · supports CRT (with D-Sub connector on edge) · LVDS · Chrontel CH7308B for 24-bit dual channel LVDS · 2x DF13 sockets on board
LAN	2x Intel® 82583V PCI-E Gigabit LAN · RJ-45 connector on edge
Audio	Built-in Intel® High Definition Audio · With Realtek ALC662 Codec · Supports 5.1 channels
LPC I/O	Winbond W83627UHG · 1x IDE, 1x KB/mouse, 3x RS232, 1x RS-232/422/485, 2x SATA, 1x LPT
Serial Ports	Three RS-232, one RS-232/422/485
Serial ATA	Supports 2 ports
Watchdog Timer	Generates system reset; 256 levels
Digital I/O	4 in / 4 out
USB	Five USB 2.0 ports (1x edge connector + 4x via pin header)
Keyboard and Mouse Connector	PS/2 type
Edge Connectors	VGA CRT, 2x RJ-45, USB, PS/2 KB/mouse · PCI to ISA Bridge · ITE IT8888G x1 for high drive ISA bus
Watchdog Timer	Generates system reset; 256 levels
Form Factor	Half Size CPU Card
Dimensions	186mm x 129mm
Power Consumption	Intel® Atom™ Processor N270 1.6GHz · w/ 2 x 1GB DDR2-800 · +5V: 4.31A · +12V: 1.28A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)
