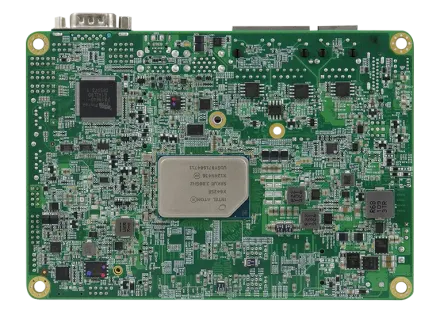

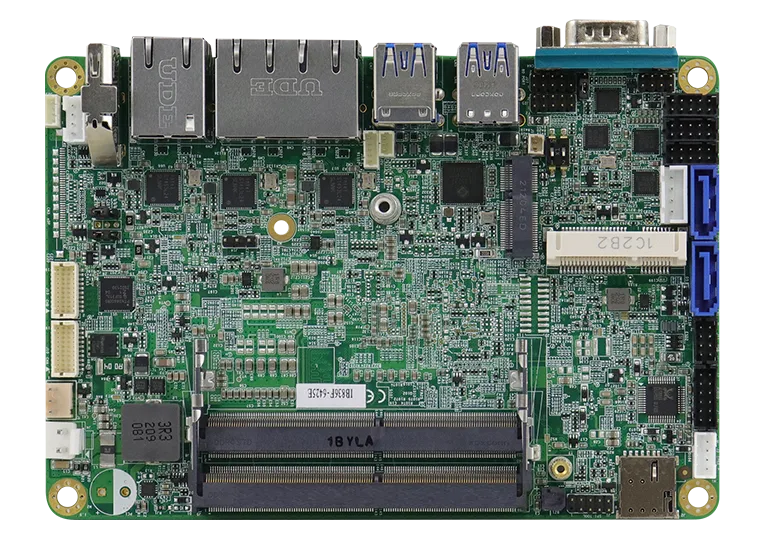

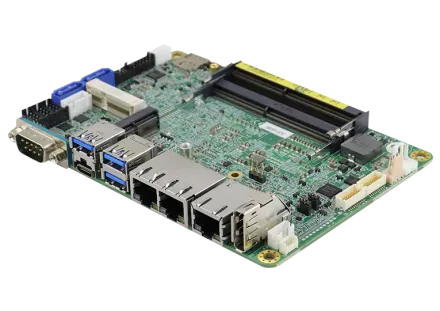

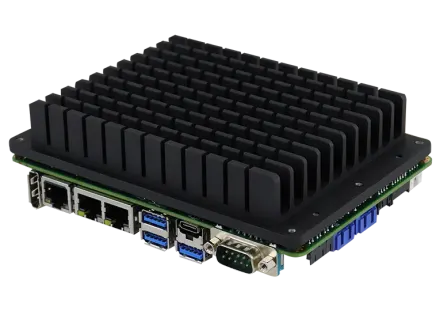

IB836

Ordinateur monocarte 3,5 po — Intel® Atom® x6000 Series/ Pentium®/ Celeron® SoC

Ordinateur monocarte 3,5 po — Intel® Atom® x6000 Series/ Pentium®/ Celeron® SoC. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel® Atom® QC x6425E (1.8GHz/3.0GHz)Intel® Atom® QC x6413E (1.5GHz/3.0GHz)

MEMORY

DDR4-3200 SO-DIMM, Max. 32GB, (supports IBECC based on CPU)

STORAGE

1x mSATA (Shared with SATA port)

DISPLAY

2x DisplayPort (DP connector & Type-C) eDP or 24-bit dual-channel LVDS

x86 based 3.5 Single Board…Single Board Computer

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT IB836 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

24 LIGNES

CPU	Intel® Atom® QC x6425E (1.8GHz/3.0GHz)Intel® Atom® QC x6413E (1.5GHz/3.0GHz)
PCH	Integrated in Intel® SoC
Memory	DDR4-3200 SO-DIMM, Max. 32GB, (supports IBECC based on CPU)
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x mSATA (Shared with SATA port)
Mini Type Slots	1x M.2 (E-Key, type:2230)1x Mini PCI-E (full-size)
Graphics Controller	Intel® SoC integrated Gen11 Graphics
Video Output	2x DisplayPort (DP connector & Type-C) eDP or 24-bit dual-channel LVDS
Ethernet	3x Intel® I226IT 2.5G LAN for Atom® (x6000)
I/O Chipset	Fintek F81964D-I
Serial Port	1x RS232/422/485 (Jumperless selection)3x RS232
USB 2.0	2x USB 2.0 (pin-header)
USB 3.X	3x USB 3.1 (Type-A)1x USB (Type-C)
Serial ATA	2x SATA III
Audio	Built-in HD with Realtek ALC888S w/ class-D amplifier
TPM	TPM (2.0)
Others	Digital I/O (4-in/4-out), EuP/ErP, +9V~+36V DC-in
Dimensions (L x W)	102mm x 147mm (4" x 5.8")
Power Consumption	Intel® Atom® x6413E 1.5GHz w/ 2x DD4 3200 16GB +12V: 1.87A
Operating Temperature	Atom® x6000: -40°C~70°C(-40°F~158°F)
Storage Temperature	-40°C~85°C (-40°F ~185°F)
Relative Humidity	90% (non-condensing@60°C)
